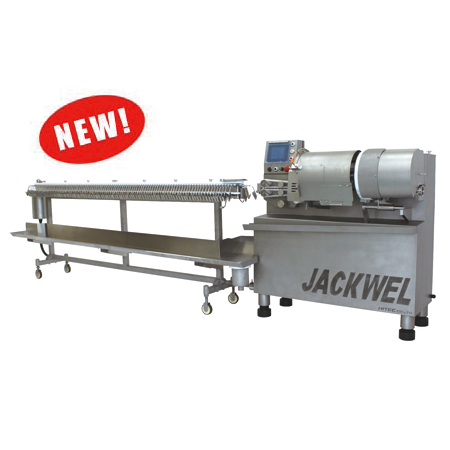

SAUSAGE HIGH SPEED LINKING AND HANGING SYSTEM

　
JACKWEL

JACKWEL

  • ●It is a revolutionary equipment that can perform over 1,000 pieces a minute and can produce equal length, equal weight sausages by two operators.
    ●Even without the linking chain, JACKWEL makes it possible to make a certain length products with natural casings by using two butterfly wings for twisting and the upper and lower belts for transfer.
    ●One of the features of this portioning system is you can freely change the product length and weight without linking chain.
    ●Collagen casing is available too. (Manual insertion)

    • JACKWEL MOVIE
    Multi stuffing tube revolver head Operator Friendly Monitor

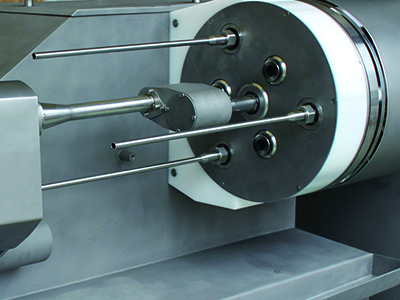

  • Multi stuffing tube revolver head
  • The multi stuffing tube turret (revolver head) allows:
    - pre-feeding of natural casings
    - up to 30% increased production output
    - faster cycle times
    - reduced machine stopping / waiting time
    		•

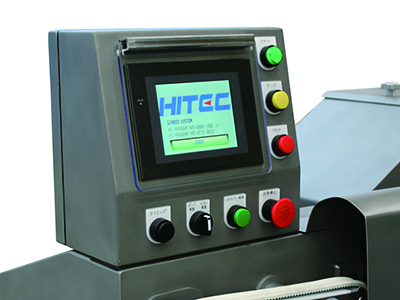

  • Operator Friendly Monitor
  • ●Easy changing of products
    ●Production control
    ●Maintenance and troubleshooting
    		•

    ■ SPECIFICATION

    Production Rate Natural Casing Max. 1,000 pcs/min
    Production Size 25 - 1,200mm
    Casing Size 13 mm - 36 mm
    Height 1,457 mm (57 23/64 in)
    Width 762 mm (30 in)
    Length 4,400 mm (173 15/64 in)
    Weight Approx 500 kg (1,102 lbs)
    Power Requirements Three-phase, 4.2 kW (without Power of Stuffwel)
    Pneumatic Requirements Pressure 0.5 Mpa (75 psi)
  • ※ Specification and equipment are subject to change without any obligation on part of the manufacturer.
    ※ The above production rate is subject due to the conditions such as production item, factry and other conditions.

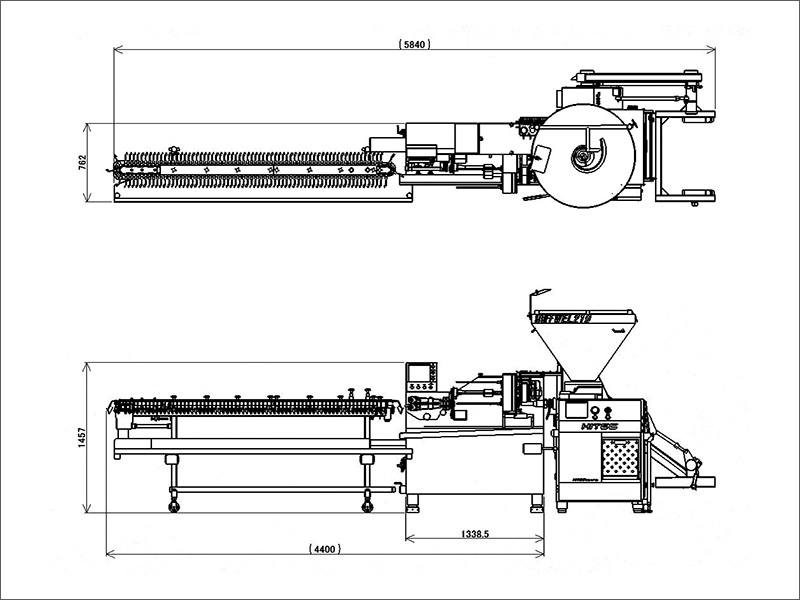

    • ■ LAYOUT

    　　　　　　　　　　　　　　　　　　
    layout of jackwel
