OutlineDetailsSpecification



■Servo operated metering pump
Hitec engineers utilize the servo motor in order to eliminate costly clutch components and maximize sausage count.

■Independent Electrical Control for Drive
Metering Pump, Twister and Stuffing Tube Rotary Head, Linking Chain, and Conveyor are driven by motors independntly and each motor is under separate electrical control. Such independent drive and separate control achieves highspeed stuffing of sausages made with natural casing. In addition, structure of drive transmission made as simple as possible has not only reduced the number of parts used but also improved durability in drive transmission parts, thus preventing occurrence of troubles and cutting substantial time, cost, and difficulty in maintenance.

■A redesigned main body
Housed by a completely redesigned main body, all components are very easily accessible. The new "unibody" construction design of the main body not only offers exceptional strength but also insures no problems due to water invasion.

■Improved electrical design
All electrical components are housed separately in an exclusive stainless steel waterproof box. Thanks to a much wider door opening, operations such as parts exchanging can be performed very easily.

One with an automatic casing feeder processes casings of all types and the other is exclusively used for natural casing. "LINKWEL-X" is the most suitable machine for any kind of casings including sheep, hog, collagen, and cellulose.

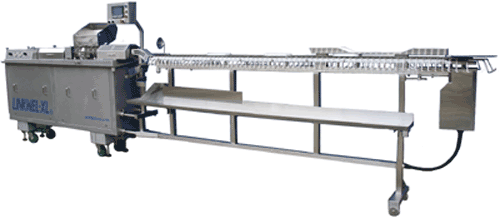

■"LINKWEL-X" is the equal-length,equalweight, and equal-diameter sausage stuffing machine for natural casing.
In the conventional production of natural casing sausages, it was considered impossible to make weight and length of sausages constant. However, our new product "LINKWEL" is the world's first sausage stuffing machine that has realized production of natural casing sausages with equal weight as well as equal length.

■"LINKWEL-X" can minimize breakage of casings during stuffing.
As it employs a stuffing method different from the conventional ones, it drastically decreases the frequency of casing breakage due to a success in a sharp decrease of pressure on casings during stuffing.

■"LINKWEL-X" achieved high-speed production of natural casing sausages.
It is a machine completed with an idea quite different from the conventional stuffing theory for natural casing sausages. It has realized a production with much higher speed than the conventional natural casing sausages stuffing machine. In addition, since it can be connected to a hanging system, productivity is improved including an operation of hanging sausages on rods.

■"LINKWEL-X" has 2 types.
One with an automatic casing feeder processes casings of all types and the other is exclusively used for natural casing. "LINKWEL" is the most suitable machine for any kind of casings including sheep ,hog, collagen, and cellulose.
