HITEC M-3 |
HITEC M-3L |
| Production Rate |
Max. 7,500 lbs./hr (3,400kg/hr) |
The figures shown above may change depending
on the product, plant condition,
local requirements for power and/or other respective matters. |
| Product Size |
3 pitches (1 1/8 in, 28.4mm) through
32 pitches (12 in, 305mm) or more |
| Casing Size |
Cellulose casing No.13-No.36.
Larger size can be applied with HITEC's optional unit. |

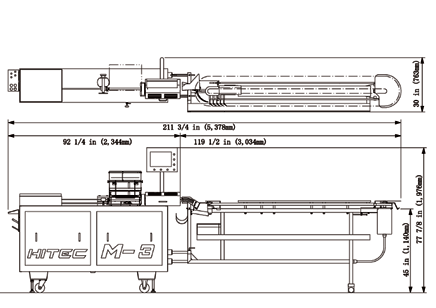

| Height |
77 7/8 in(1,976mm) |
| Width |
30 in (763mm) |
| Length |
LINKER |
92 1/4 in (2,344mm) |
107 3/8 in (2,726mm) |
| CONVEYOR |
8feet
(2.4m) |
119 1/2 in (3,034mm) |
10feet
(3m) |
143 7/8 in (3,654mm) |
| TOTAL |
8feet
(2.4m) |
211 3/4 in(5,378mm) |
226 7/8 in (5,760mm) |
10feet
(3m) |
236 1/8 in(5,988mm) |
251 1/8 in (6,380mm) |
| Weight |
Approx. 1,430 lbs.(650 kg) |
Approx. 1,450 lbs. (660kg) |
| Stuffing Tube Height |
50 in (1,270mm) |
| Power requirements |
Three-phase, 6.1kw |
| Pneumatic Requirements |
Pressure : 75 psi ( 520kPA ) |
| Consumption : 79 in3 (1,300 cm3) per cycle |
Consumption : 96 in3 (1,560 cm3) per cycle |
Specifications and equipment are subject to change without any obligation
on the part of the manufacturer.
|
