OutlineSpecification

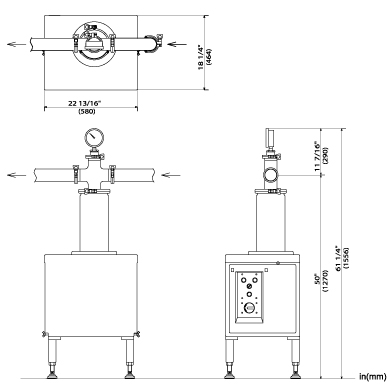

layout
spec
Height 1420～1560 mm
Height of pipe connection 1130～1270 mm
Depth 580 mm
Width 464 mm
Weight 200 kg
Cylinder capacity 6 liter
Range of pressure adjustment 0～0.6 Mpa
Cylinder diameter 160 mm
Stroke 300 mm
Connection pipe size 3S (Diameter 76.3 mm)
Compressed Air 94.25 psi / 0.65 Mpa
Controllable flow rate
at constant pressure		 0～2,200 liter per min
Accuracy of constant pressure within ±0.02 Mpa
Consumption air volume
　　　　 (MAX)		 485 liter per min
Power requirements 11 W

Other specifications' equipment in addition to the above also can be manufactured. Specifications and equipment are subject to change without any obligation of the part of the manufacturer. Connection pipes are optional.
