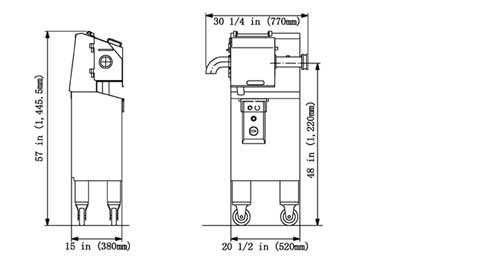

WITHOUT TANK |

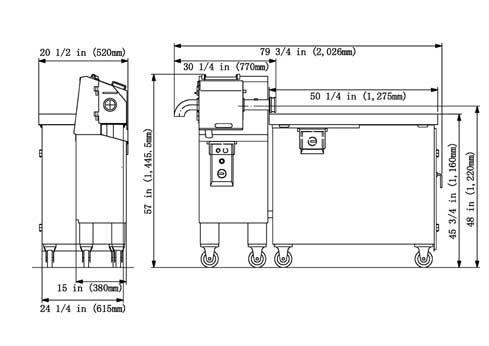

WITH TANK |
| Product Size |
Diameter 13mm 〜 36mm
Length 3 pitches ( 28.5mm) or more |
| Peeling Speed |
Max. 980ft(300m)/min |
| Sausage Loading Height |
48 in (1,220mm) |
| Height |
57in (1,445.5mm) |
| Width |
30 1/4 in (770mm) |
79 3/4 in (2,026mm) |
| Length |
15in (380mm) |
26 11/16 in (677.5mm) |
| Weight |
Approx.200lbs.(90kg) |
Approx.420lbs.(190kg) |
| Power Requirement |
Three-phase 0.75Kw |
Three-phase 4.45Kw |
| Air Requirement |
Pressure : 100PSI (7.0kg/cm3)
Consumption : 8 ft3(226L)/min |
| Steam Requirement |
Pressure : 30PSI (2.0kg/cm3)
Consumption : 10 ft3(293L)/min |
Specifications and equipment are subject to change without any obligation
on the part of the manufacturer.
|
