WITHOUT TANK |

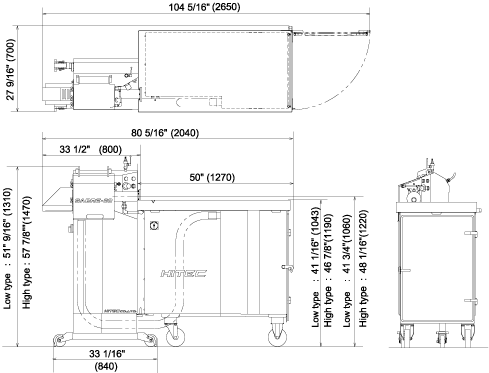

WITH TANK |
| Product Size |
Diameter 13mm 〜 36mm
Length 3 pitches ( 28.5mm) or more |
| Peeling Speed |
Max. 980ft(300m)/min |
| Sausage Loading Height |
High type : 48 1/16in (1,220mm)
Low type : 41 3/4in (1,060mm) |
| Height |
High type : 57 7/8in (1,470mm)
Low type : 51 9/16in (1,310mm) |
| Width |
33 1/16 in (840mm) |
104 5/16 in (2,650mm) |
| Length |
16 13/16in (427mm) |
27 9/16 in (700mm) |
| Weight |
Approx.220lbs.(100kg) |
Approx.440lbs.(190kg) |
| Power Requirement |
Three-phase 0.75Kw |
Three-phase 4.45Kw |
| Air Requirement |
Pressure : 100PSI (7.0kg/cm3)
Consumption : 8 ft3(226L)/min |
| Steam Requirement |
Pressure : 30PSI (2.0kg/cm3)
Consumption : 10 ft3(293L)/min |
Specifications and equipment are subject to change without any obligation
on the part of the manufacturer.
|
