LINKWEL-G2
|
| Production Rate |
Artificial Casing :Max.3,200kg/hr
Natural Casing :Max.1,000pcs/min |
|
The figures shown above may change depending
on the product, plant condition, local requirements for power
and/or other respective matters.
|
| Casing Size |
Sheep Casing 14mm-25mm
Hog Casing 26mm-36mm
Collagen Casing 13mm-36mm
Cellulose Casing 13mm-40mm |
| Product Size |
Artificial Casing : 3 pitches (28.6mm 1 1/8 in) through 32 pitches (304.8mm,
12 in) or more
Natural Casing :3 pitches (28.6mm 1 1/8 in) through 20 pitches (109.5mm,
7 1/2in) or more |
|
Casing Shirred Length
|
Sheep Casing Max.180mm (7 1/8in)
Hog Casing Max. 180mm (7 1/8in)
Collagen Casing Max. 320mm (12 5/8in)
Cellulose Casing Max.355mm (14in) |

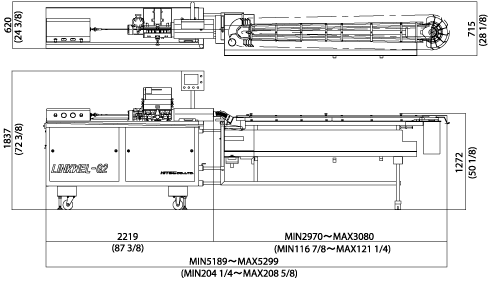

| Length |
5,189mm (204 1/4 in) -MAX5,299mm (208 5/8 in) |
| Weight |
Approx. 690kg (1,520 lbs) |
| Height |
1,270mm (50 in) |
| Power Requirements |
Three-phase,6.7kw
Any special local requirements must be so advised. |
| Pueumatic Requirements |
Pressure:0.5Mpa (75
psi)
Consumption: 600cc (36.68 in3)/cycle |
Specifications and equipment are subject to change without any obligation
on the part of the manufacturer.
