LINKWEL
|
LINKWEL-L
|
| Production Rate |
Artificial Casing Max.3,200kg/hr
Natural Casing Max.800pcs/min |
|
The figures shown above may change depending
on the product, plant condition, local requirements for power
and/or other respective matters.
|
| Casing Size |
Sheep Casing 14mm-25mm
Hog Casing 26mm-36mm
Collagen Casing 13mm-32mm
Cellulose Casing No.13-No.36 |
| Product Size |
Artificial Casing : 3 pitches (28.6mm 1 1/8 in) through 32 pitches (304.8mm,
12 in) or more
Natural Casing :3 pitches (28.6mm 1 1/8 in) through 20 pitches (109.5mm,
7 1/2in) or more |
|
Casing Shirred Length
|
Collagen Casing Max. |
Max. 280mm(11 1/32 in) |
Max. 400mm(15 48/64 in) |
| Cellulose Casing Max. |
Max. 325mm(12 3/4 in) |
Max. 440mm(17 3/8 in) |

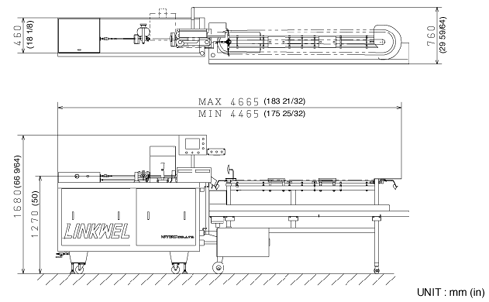

| Length |
4,844mm (190 45/64
in) -MAX5,044mm (198 37/64 in) |
MIN.4,465mm (175
25/32 in) -MAX.4,665mm (183 21/32 in) |
| Weight |
Approx. 690kg (1,520 lbs) |
Approx. 730kg (1,610 lbs) |
| Height |
1,270mm (50 in) |
| Power Requirements |
Three-phase,6.7kw
Any special local requirements must be so advised. |
| Pueumatic Requirements |
Pressure:0.5Mpa (75
psi)
Consumption: 600cc (36.68 in3)/cycle |
Specifications and equipment are subject to change without any obligation
on the part of the manufacturer.
