A revolutionary breakthrough over the conventional looper horn which moves to hang product over hooks.
Our system allows precise hanging by simply allowing the product to "slide" to the conveyor hooks without
the need for more wear parts as on a looper system.
|
 |
 |
 |
|
The metering pump offers increased
durability compared to conventional ones.Our design offers
excellent long term weight control with less necessary
overhauls.
A magnetic clutch starts and stops the pump precisely
without slippage offering exact front ends and tails. |
 |
 |
|
|
| Never have to concern about
leaks. Direct drive from motor with timing belt brings
fewer components and extended parts life. When necessary,replacing
parts is done quickly and easily without the need to remove
the entire twister assembly. |
 |
 |
|
|

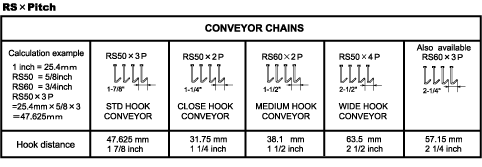

Available in various lengths from 3 pitches (28.56mm),
as well as half pitch (4.76mm). Also capable of straight
stuffing (no twist). |
 |
 |
|
|
| Complete separation of pneumatic parts and electrical parts allows easy
and safe repair/adjustment. |
 |
 |
|
|
| The standard type is equipped with Water Saucer and Water Chute to get water flow into one place. |
|
■LINKWEL for natural and artificial casing
type
This type of LINKWEL can stuff all casing including sheep casing,hog
casing,
collagen casing,and cellulose casing. Changeover of a product is
very easy and even the changeover from natural casing to artificial
casing to natural casing is so simple. This changeover without special
tools and skill can be made by an operator and exchange work including
all of the parts and change in setting-up can be finished within
10 minutes.
|
 |
 |
|
|
| All your necessary information displayed at a moment notice, quick and easy. |
|
■Easy changing of products
Easy as 1. 2. 3.
- Confirm you have the correct linking chain, tube size, chuck, and hopper
adjustment.
- Select the desired preprogrammed product code.
- Push the start button.
Everything is stored and predetermined. Machine speed, pump speed,
front and tail of casing, twist, etc, the same every time!!!
■Production control
All vital data including cycles run, set point, etc. can be checked
at anytime.
■Maintenance and troubleshooting
If any type of problems occur during operation, its location will
be displayed immediately. Also, it can quickly be resolved with
a flow chart for the machine.
|
 |
|
|
|

Multi type casing round bar hook Natural casing plate hook |
|
|
|
 |
| Other hook designs available for ring sausage or other specialized applications. |
|
|
|

Mistsubishi Omron Allen-bradley
|
|
|
Easy to operate, non proprietary electronic components and controls.
Omron, Mitsubishi or Allen Bradley, the choice is yours. |
|
|
|
|
