| Production Rate |
Natural Casing Max 800pcs/min |
|
The figures shown above may change depending
on the product, plant condition, local requirements for power
and/or other respective matters.
|
| Production Size |
3 Pitches (28.62mm) or more |
| Casing
Size |
Sheep Casing 14mm-25mm |
| Hog Casing 26mm-36mm |

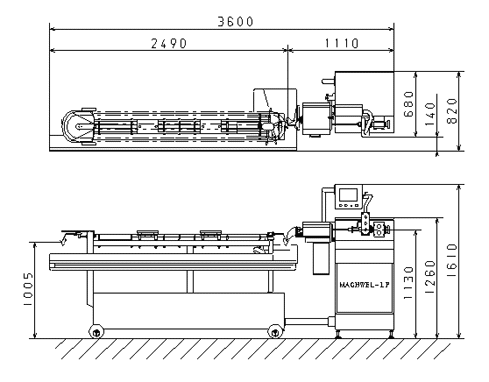

| Height |
1,610mm (63 25/64 in) |
| Weidth |
820mm (32 9/32 in) |
| Length |
3,600mm (141 47/64
in) |
| Weight |
Approx 500kg (1,102
lbs) |
| Power
Requirements |
Three-phase, 6.7kw
Any special local requirements must be so advised. |
| Pneumatic
Requirements |
Pressure 0.5Mpa (75
psi) |
Specifications and equipment are subject to change without any obligation
on the part of the manufacturer.
The above production rate is subject due to the condition such as
production item, factory and other conditions.
|
