STUFFWEL 200 |
STUFFWEL 200
& LIFTING DEVICE |
| Filling Capacity |
up to 5,000 kg/h ( 12,100 lbs./h ) |
| Filling Pressure |
up to 35 bar |
Portioning Speed
25g
50g
100g
100g |
up to 600 portions/min
up to 500 portions/min
up to 400 portions/min
up to 350 portions/min |
| Portioning Range |
4.0 - 99,999.9 g |
| Hopper Capacity |
320L |

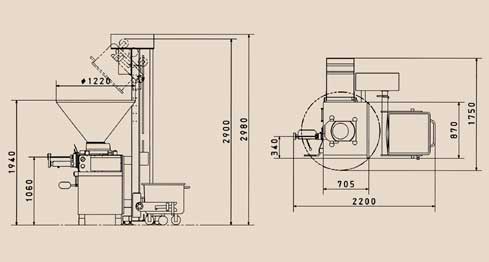

| Height |
1,940 mm ( 76 3/8 in ) |
2,980 mm ( 117 5/16 in ) |
| Depth |
1,750 mm ( 68 29/32 in ) |
1,750 mm ( 68 29/32 in ) |
| Length |
1,342 mm (52 27/32 in ) |
2,200 mm ( 86 5/8 in ) |
| Weight |
Approx. 650 kg ( 1,430 lbs. ) |
Approx. 850 kg ( 1,870lbs. ) |
| Power Requirements |
Therr-phase 8.55 kW |
Therr-phase 9.65 kW |
Specifications and equipment are subject to change without any obligation
on the part of the manufacturer.
The above production rate is subject due to the condition such as
production item, factory and other conditions.
|
