STUFFWEL 219 |
STUFFWEL 219
& LIFTING DEVICE |
| Filling Capacity |
up to 3,000 kg/h ( 12,100 lbs./h ) |
| Filling Pressure |
up to 50 bar |
Portioning Speed
25g
50g
100g
100g |
up to 600 portions/min
up to 500 portions/min
up to 400 portions/min
up to 350 portions/min |
| Portioning Range |
4.0 - 99,999.9 g |
| Hopper Capacity |
250L |

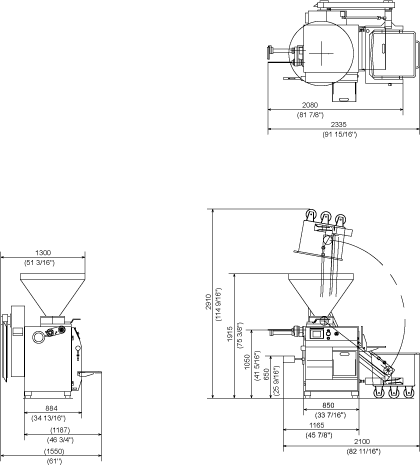

| Height |
1,915 mm ( 75 3/8 in ) |
| Depth |
1,825 mm ( 71 7/8 in ) |
2,080 mm ( 81 7/8 in ) |
| Length |
1,240 mm (48 13/16 in ) |
1,550 mm ( 61 in ) |
| Weight |
Approx. 700 kg |
Approx. 925 kg |
| Power Requirements |
Therr-phase 200V 8.55 kW |
Therr-phase 200V 10.05 kW |
Specifications and equipment are subject to change without any obligation
on the part of the manufacturer.
The above production rate is subject due to the condition such as
production item, factory and other conditions.
|
