M-10 |
M-20 |
| Production Rate |
Max. 3,000 kg/hr |
|
The figures shown above may change depending
on the product, plant condition,
local requirements for power and/or other respective matters.
|
| Product Size |
3 pitches or more |
| Casing Size |
Collagen casing 13mm-32mm
Cellulose casing No.13-No.36 |
| Casing
Shirred Length |
Collagen casing Max. |
Max. 280mm (11 1/32 in) collagen casing
Max. 325mm (12 13/16 in) cellulose casing |
| Cellulose casing Max. |
280ｍｍ（11 1/32 in） |
400mm（15 48/64 in) |
| 325mm（12 51/64 in) |
445mm（17 33/64 in) |

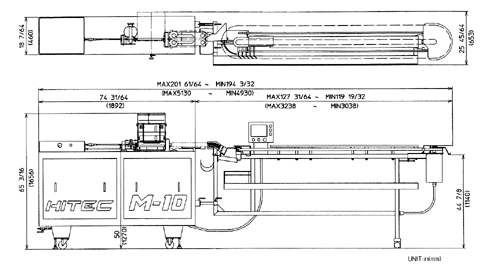

| Height |
1,656mm (65 3/16
in) |
| Width |
760mm (25 45/64
in) |
| Length |
4,465mm (175 25/32 in) -4,665mm (183 21/32 in) |
4,844mm (190 45/64 in) -5,044mm (198 37/64 in) |
| Weight |
Approx. 675kg (1,488.11
lbs) |
Approx. 750kg (1,653.45
lbs) |
| Power requirements |
Three-phase, 6.7kw
Any special local requirements must be so advised. |
| Pneumatic Requirements |
Pressure:5.3ｋｇ/ｃｍ2(75psi)
Consumption:600cc (36.68 in3) / cycle |
Specifications and equipment are subject to change without any obligation
on the part of the manufacturer.
|
