SPS-120V |
SPS-200V |
| Discharge Rate Per Revolution |
1.2 L (0.32 gal) |
2.0 L(0.53gal) |
| Discharge Rate Max |
2,333 kg/hr
(5,130lbs/hr ) |
3,888 kg/hr
(8,550 lbs/hr) |
| Stuffing Rate |
2,000 kg/hr
(4,400lbs/hr ) |
3,500 kg/hr
(7,700 lbs/hr) |
|
The figures shown above may change depending
on the product, plant condition, local requirements for power
and/or other respective matters. |
| Pump Rotation Speed |
30 - 60 rpm |
| Capacity of Equalizer |
6 L (1.58 gal) |
| Hopper Capacity |
300 L ( 79.3gal) |
| Working Electric Power |
Three-Phase, 3.7 kw |
| |

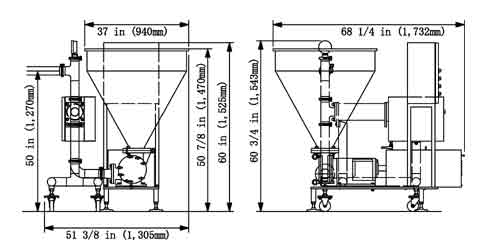

SPS-120V W/T Equalizer |
| Height |
1,543mm ( 60 3/4 in ) |
| Width |
1,305mm ( 51 3/8 in) |
| Length |
1,732mm (68 1/4 in) |
| Weight |
500kg (1,100 lbs) |
|
 |
| System 1 |
Magnet Filter |
| System 2 |
Lifting Device |
Specifications and equipment are subject to change without any obligation
on the part of the manufacturer.
The above production rate is subject due to the condition such as
production item, factory and other conditions.
|
