OutlineDetailsSpecification

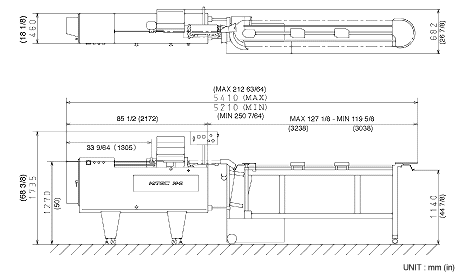

layout

M-2 with COSMO 21

layout
spec
Production Rate Max. 7,500 lbs./hr (3,400 kg/hr)
The figures shown above may change depending on the product, plant condition, local requirements for power and/or other respective matters.
Casing Size Cellulose casing code 13 through 36.
Larger size can be applied with HITEC's optional unit.
Product Size 3 pitches (1 1/8 in, 28.4mm) through
32 pitches (12 in, 305mm) or more
Casing Shirred Length Max. 16 1/2 in (419mm) cellulose casing
Height 68 3/8 in (1,735mm)
Width 26 7/8 in (682 mm)
Length MAX. 212 63/64 in (5,410 mm)-MIN. 205 7/64 in (5,210 mm)
Weight Approx. 1,430 lbs (650 kg)
Stuffing Tube Height 50 in (1,270mm)
Power requirements Three-phase, 6.7 kW
Any special local requirements must be so advised.
Pneumatic Requirements Pressure: 75psi (5.3kg/cm2)
Consumption:73 in3 (1,200cm3) per cycle

n addition to HITEC M-2A, HITEC M-2AL (able to combine with COSMO) designed for casing shirred length of MAX. 21 1/2 in (546 mm) is recommended.
Specifications and equipment are subject to change without any obligation on the part of the manufacturer.
