HIGH SPEED LINKING AND HANGING SYSTEM FOR ALL TYPE CASING


LINKWEL LINKWEL-X

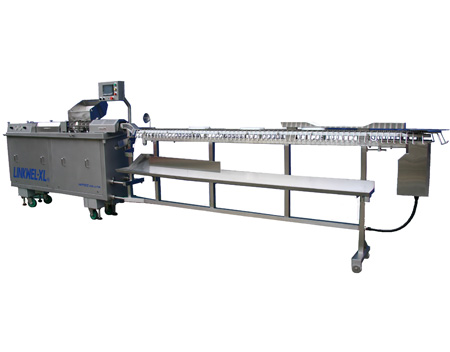

LINKWEL-X / LINKWEL-XL

  • The world's first equal-length, equal-weight, and equal-diameter sausage stuffing machine for natural casing.
  • Hitec engineers utilize the servo motor in order to eliminate costly clutch components and maximize sausage count.
    This type of LINKWEL-X can stuff all casing including sheep casing, hog casing, collagen casing, and cellulose casing. Changeover of a product is very easy and even the changeover from natural casing to artificial casing to natural casing is so simple.
  • Drive of Metering pump with Servo motor. Heavy Duty metering pump
  • Drive of Metering pump with Servo motor.
  • In view of further improving the precise weight performance of the well established LINKWEL, LINKWEL-L in producing exact weight sausages, the motor for metering pump is changed to the servo motor, which are "LINKWEL-X, LINKWEL-XL" Series. Because ON/OFF change with electromagnetic clutch becomes unnecessary, the motor durability is increased and the maintenance becomes much easier.
  • Heavy Duty metering pump
  • Hitec has achieved to make heavy duty metering pumps by stronger drive shaft, stronger idler shaft and more durable bearings. Our design offers excellent long term weight control with less necessary overhauls.
  • Maintenance free no oil twisting system Sanitary Draining System
  • Maintenance free no oil twisting system
  • A simple motor with timing belt means fewer components and extended parts life. When necessary, replacing parts is done quickly and easily without the need to remove the entire twister assembly. No one can match the performance of this Hitec design.
  • Sanitary Draining System
  • The standard type is equipped with Water Saucer and Water Chute to get water flow into one place.
  • Linking Chain Linking Belt
  • Various Linking Chain
  • Available in various lengths from 3 pitches (28.56mm), as well as half pitch (4.76mm). Also capable of straight stuffing (no twist).
  • Linking Belt
  • Pinchers that are attached on the linking belt fix the product length. Customers can choose the product length from 2 cm and in units of 0.5 cm.
  • Separation of pneumatic parts and electrical parts Operator Friendly Monitor
  • Separation of pneumatic parts and electrical parts
  • Complete separation of pneumatic parts and electrical parts allows easy and safe repair/adjustment.
  • Operator Friendly Monitor
  • All your necessary information displayed at a moment's notice, quick and easy.
  • Various electric systems available HITEC Hook Design Options

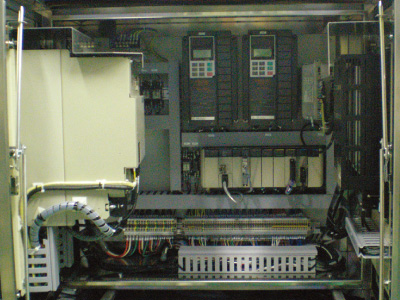

  • Various electric systems available
  • Easy to operate, non proprietary electronic components and controls.Omron, Mitsubishi or Allen Bradley, the choice is yours.
  • HITEC Hook Design Options
  • Above:Multi type casing round bar hook
    Bottom:Natural casing plate hook
  • Other hook designs available for ring sausage or other specialized applications.
  • ■ SPECIFICATION

    Production Rate Artificial Casing Max 3,200 kg/hr
    Natural Casing Max 800 pcs./min

    ※Dependent on casing quality, product size, weight and/or factory conditions.

    Product Size Artificial Casing 3 pitches (28.6 mm , 1 1/8 in ) through 32 pitches (304.8 mm, 12 in) or more.
    Natural Casing 3pitches (28.6 mm , 1 1/8 in) through 20 pitches (190.5 mm , 7 1/2 in)or more

    ※Longer sizes can be applied with HITEC'S optional unit.

    Casing Size LINKWEL-X             LINKWEL-XL
    Diameter Sheep Casing 14 mm (35/64 in)       ~      25 mm (63/64 in)
    Hog Casing 26 mm (1 1/32 in)       ~      36 mm (1 27/64 in)
    Collagen Casing 13 mm (33/64 in)       ~      32 mm (1 17/64 in)
    Cellulose Casing 14.5 mm (37/64 in)       ~      34 mm (1 11/32 in)
    Shirred Length Sheep Casing 180 mm (7 1/16 in)
    Hog Casing 180 mm (7 1/16 in)
    Collagen Casing 280 mm (11 in)               300 mm (11 3/4 in)
    Cellulose Casing 325 mm (12 3/4 in)              440 mm (17 3/8 in)

    ■ MACHINE SIZE

    Total Machine size LW-X+ 8F conveyor LW-XL + 8F conveyor LW-X+10F conveyor LW-XL+10F conveyor
    Height 1846 mm (72 5/8 in) 1846 mm (72 5/8 in) 1846 mm (72 5/8 in) 1846 mm (72 5/8 in)
    Tube height 1270 mm (50 in) 1270 mm (50 in) 1270 mm (50 in) 1270 mm (50 in)
    Length MAX 5045 mm (198 5/8 in) 5424 mm (213 1/2 in) 5665 mm (223 in) 6044 mm (238 in)
    Width 795 mm (31 1/4 in) 795 mm (31 1/4 in) 735 mm (28 7/8 in) 735 mm (28 7/8 in)
    Weight 690 kg (1518 lb) 740 kg (1610 lb) 710 kg (1562 lb) 750 kg (1650 lb)
    Net(Machine dimendion and weight) LINKWEL-X LINKWEL-XL 8F conveyor 10F conveyor
    Height 1846 mm (72 5/8 in) 1846 mm (72 5/8 in) 1423 mm (56 in) 1423 mm (56 in)
    Length MAX 2046 mm (80 1/2 in) 2425 mm (95 1/2 in) 2999 mm (118 1/8 in) 3619 mm (142 1/2 in)
    Width 669 mm (26 3/8 in) 669 mm (26 3/8 in) 795 mm (31 1/4 in) 735 mm (28 7/8 in)
    Weight 500 kg (1110 lb) 540 kg (1188 lb) 190 kg (418 lb) 210 kg (462 lb)
    Gross (Wooden crate + Box dimensions and weight) LINKWEL-X LINKWEL-XL 8F conveyor 10F conveyor
    Height 1846 mm (72 in) 1846 mm (72 in) 1550 mm (61 in) 1550 mm (61 in)
    Length 2550 mm (100 3/8 in) 2750 mm (108 1/4 in) 3500 mm (137 3/4 in) 4100 mm (161 1/2 in)
    Width 900 mm (35 1/2 in) 900 mm (35 1/2 in) 750 mm (29 1/2 in) 750 mm (29 1/2 in)
    Weight 720 kg (1584 lb) 780 kg (1716 lb) 410 kg (902 lb) 470 kg (1034 lb)

    ■ REQUIREMENTS

    Electorical Requirements Three-Phase 8,200W
    Pneumatial Requirements Pressure 520 kPa (5.2 bar)        75 psi
    Consumption 1 L, (1,000 cm3) per min     60 in3 per min
    Water Requirements Quality Clean and drinkable water
    Pressure 280-410 kPa (2.8-4.1 bar)     40-60 psi
    Consumption 1 L, (1,000 cm3) per min     60 in3 per min
    Emulsion Requirements Pressure 500 kPa (5 bar)        72 psi
    Consumption Max 3,200kg/hr     Max 7,000 lb/hr
  • ※ Specifications and equipment are subject to change without any obligation on the part of manufacturer.
    ※ The above production rate is subject to change due to the conditions such as production item, factory and other conditions.
  • ■ LAYOUT

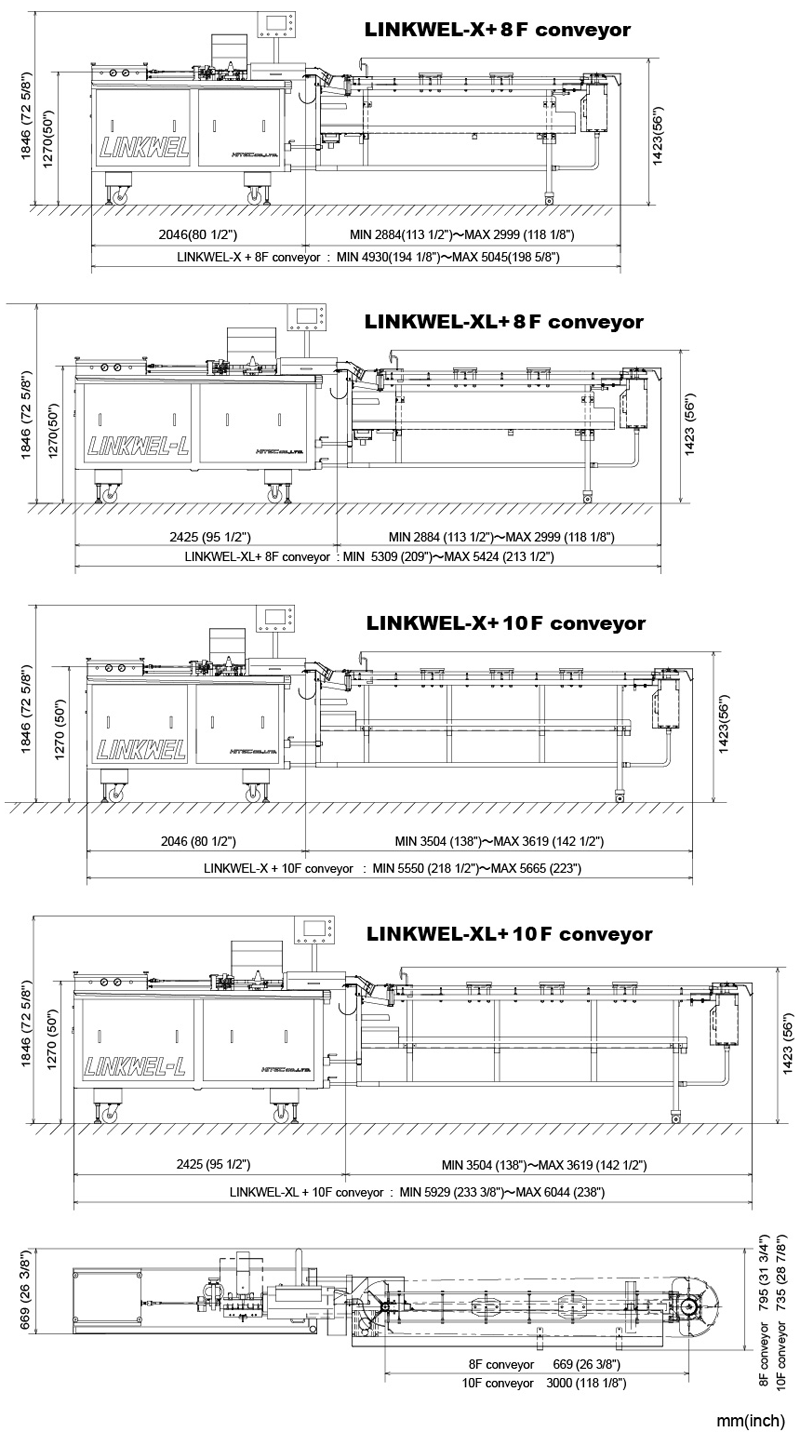

    layout of LINKWEL-X LINKWEL-XL
  • ※ Optional sanitary design hanging conveyor in 8ft or 10ft length available. Sanitary servo conveyor made of round tubing for optimum sanitation.
    All components are removable without tool usage. No debris or dirt collection surfaces makes sanitation quick and thorough.
