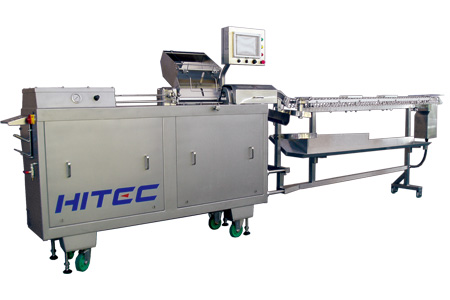

HIGH SPEED LINKING AND HANGING SYSTEM FOR ARTIFICIAL CASING


HITEC M-3 HITEC M-3L

HITEC M-3 / HITEC M-3L

  • The HITEC M-3 Linking System offers superior design focused on points compromised by other systems.
    ・System Hygiene
    ・Linking technology optimized for real world conditions
    ・Easy to understand operator interface
    ・All aspects of the design improve performance and reliability
    ・Design to meet the needs of high speed, multi-shift operations
  • monitor metering pump
  • HITEC's electrical control choices

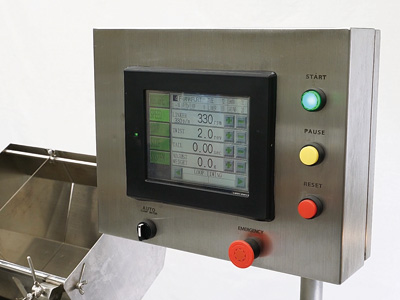

  • All your necessary information displayed at a moment notice,quick and easy.
  • Heavy Duty metering pump

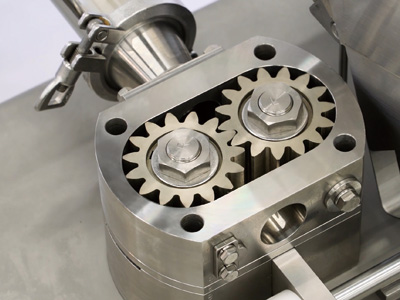

  • HITEC has achieved to make heavy duty metering pumps by stronger drive shaft, stronger idler shaft and more durable bearings. Our design offers excellent long term weight control with less necessary overhauls.
  • Stationary Chute Maintenance free no oil twisting system
  • Stationary Chute

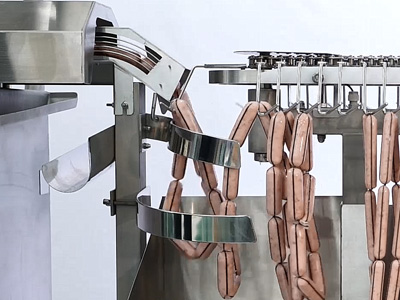

  • By using the stationary chute, no more products will be jammed at the chute section. Due to HITEC’s innovation with electoric conveyors, a looping horn is not needed. Sausages are caught by the hooks. Several other features enable us to maximize output and hanging ability.
  • Maintenance free no oil twisting system

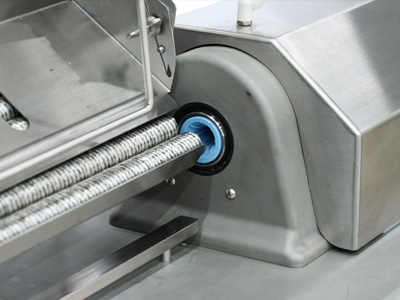

  • A simple motor with timing belt means fewer components and extended parts life. When necessary,replacing parts is done quickly and easily without the need to remove the entire twister assembly. No one can match the performance of this HITEC design.
  • Flapper style casing feed mechanizm Linking Chain, Linking Belt
  • Flapper style casing feed mechanizm

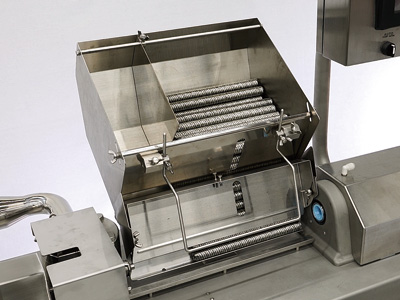

  • The HITEC M-3X features HITEC's unparallel hopper design that eliminates the need for a casing clamp. The design is quick and easy operating and reliable feeding of casings.

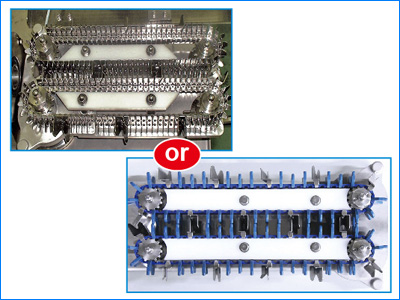

  • Linking Chain / Linking Belt
  • Linking Chain : Available in various lengths from 3 pitches (28.56 mm), as well as half pitch (4.76 mm). Also capable of straight stuffing (no twist).
    Linking Belt : Pinchers that are attached on the linking belt fix the product length. Customers can choose the product length from 2 cm and in units of 0.5 cm.
  • ■ SPECIFICATION

    HITEC M-3 HITEC M-3L
    Production Rate Max. 7,500 lbs./hr (3,400 kg/hr)

    ※The figures shown above may change depending on the product,plant condition,local requirements for power and/or other respective matters.

    Product Size 3 pitches (1 1/8 in, 28.4 mm) through 32 pitches (12 in, 305 mm) or more

    ※Longer sizes can be applied with HITEC'S optional unit.

    Casing Size Cellulose casing code 13 through 36.
    Casing Stick Length Max 16 1/2 in (419 mm) cellulose casing Max 21 1/2 in (546 mm) cellulose casing

    ■ MACHINE SIZE

    HITEC M-3 HITEC M-3L
    Height 77 7/8 in (1,976 mm)
    Width 30 in (763 mm)
    Length Linker 92 1/4 in (2,344 mm) 107 3/8 in (2,726 mm)
    Conveyor 8feet(2.4m) 119 1/2 in (3,034 mm) 119 1/2 in (3,034 mm)
    10feet(3m) 143 7/8 in (3,654 mm) 143 7/8 in (3,654 mm)
    Total 8feet(2.4m) 211 3/4 in (5,378 mm) 226 7/8 in (5,760 mm)
    10feet(3m) 236 1/8 in (5,988 mm) 251 1/8 in (6,380 mm)
    Weight Approx. 1,430 lbs. (650 kg) Approx. 1,450 lbs. (660 kg)
    Stuffing Tube Height 50 in (1,270 mm)

    ■ REQUIREMENTS

    HITEC M-3 HITEC M-3L
    Power Requirements Three-Phase 6.1 kw
    Pneumatical Requirements Quality clean and dry
    Pressure 75 psi (520 kPA)
    Consumption 79 in 3 (1,300 cm3) per cycle 96 in 3 (1,560 cm3) per cycle
  • ※ Specifications and equipment are subject change without any obligation on the part of manufacturer.
    ※ The above production rate is subject to change due to the conditions such as production item, factory and other conditions.
  • ■ LAYOUT

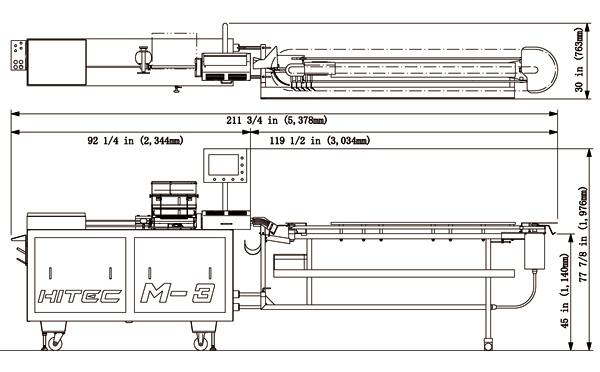

    Layout of M-3 M-3L
  • ※ Layout dimension includes dimension of optional equipment.
