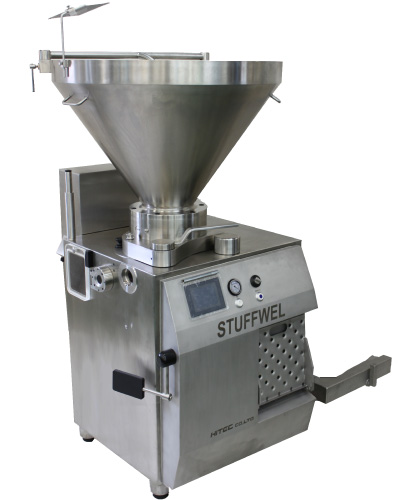

VACUUM STUFFER

　
STUFFWEL 222

STUFFWEL 222

  • Continuous Vacuum Filling Machine with High Performance, High Precision and Equal Weight Stuffing is possible for not only meat products but also fish foods, prepared foods & Other Products. The Equal Weight Stuffing is possible for Tray & Bottling as well as Casings such as Sheep, Hog, Cellulose, Collagen, Fibrous & Plastic Casings.

    • STUFFWEL　MOVIE　
    ベーンのimage スクリューフィーダー付可倒式ホッパーのimage

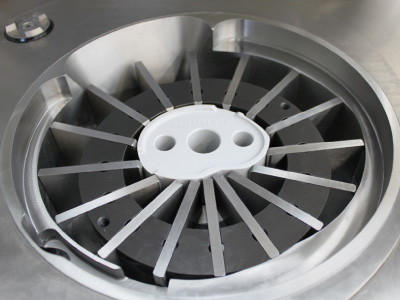

  • Vane Pump
  • The new type vane pump developed by HITEC, has accomplished advancements in transferring products without damaging the overall look and feel of the products.
    		•

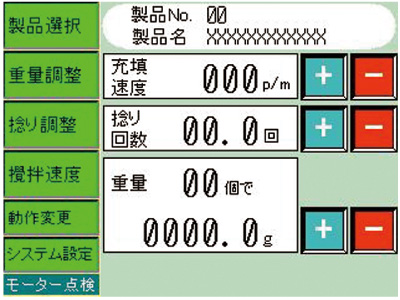

  • Production Control
  • All vital data including cycles run, set points, etc, can be checked at anytime.
    		•
    ソーセージ捻り装置（オプション）のimage ポンプ仕様のimage

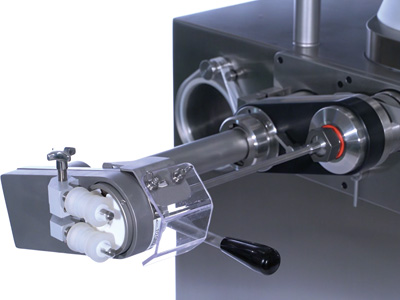

  • Sausage Twisting Device
  • By installing a simple detachable twisting device, it is possible to stuff equal weight sausage one by one. The stuffwel can produce Vienna Sausage to Frankfurter Sausage not only into natural casings but also artificial casings with a wide range of sizes.
    		•

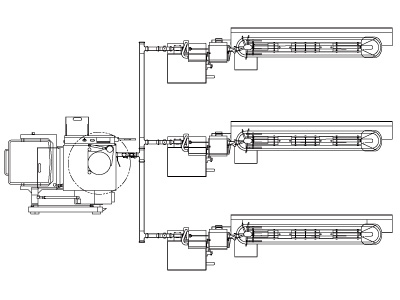

  • Pump Specification
  • The stuffwel can also be used as a meat transfer pump. The layout above is an example of Hitec Linkwel machine.One Stuffwel can connect and pump to multiple linkers.
    		•

    ■ SPECIFICATION

    STUFFWEL 222 STUFFWEL 222
    & LIFTING DEVICE
    Filling Capacity up to 5,500 kg/h
    Filling Pressure up to 60 bar
    Portioning Speed　　25 g up to 200 portions/min
    Portioning Speed　　50 g up to 100 portions/min
    Portioning Speed　　100 g up to 50 portions/min
    Portioning Range 4.0 ～ 9,999.9 g
    Hopper Capacity 300 L
    Height 2,050 mm (80 45/64 in)
    Depth 930 mm (36 39/64 in) 1,310 mm (51 37/64 in)
    Length 1,230 mm (48 27/64 in) 1,910 mm (75 13/64 in)
    Weight Approx. 820 kg (1,763 lbs) Approx. 1,020 kg (2,248 lbs)
    Power Requirements
    with Twisting Device    		 Three-phase 200 V 8.5 kW Three-phase 200 V 10 kW
    Power Requirements
    without Twisting Device    		 Three-phase 200 V 12.5 kW Three-phase 200 V 14 kW
  • ※ Specifications and equipment are subject to change without any obligation on the part of manufacturer.
    ※ The above production rate is subject to change due to the conditions such as production item, factory and other conditions.

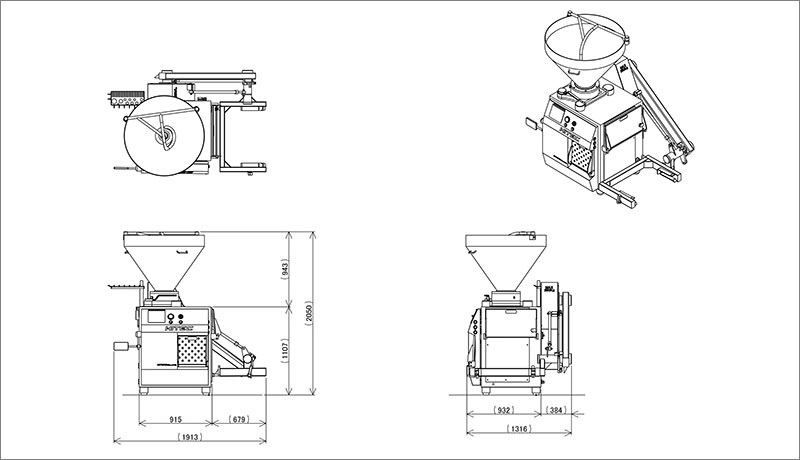

    • ■ LAYOUT

    　　　　　　　　　　　　　　　　　　
    layout of STUFFWEL222
  • ※ Layout dimension includes dimension of optional equipment.
