HIGH SPEED LINKING AND HANGING SYSTEM FOR ARTIFICIAL CASING


M-10X M-20X

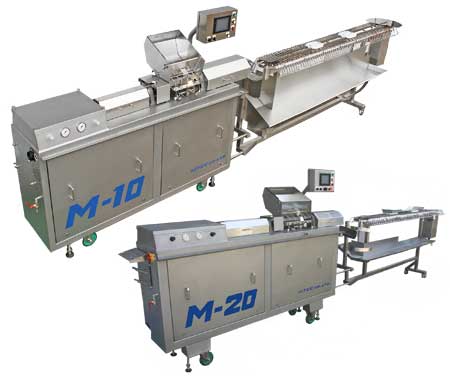

HITEC M-10X / HITEC M-20X

  • In view of further improving the precise weight performance of the well established HITEC M-10, HITEC M-20 in producing exact weight sausages,
    the motor for metering pump is changed to the servo motor, which are
    "HITEC M-10X, HITEC M-20X" Series.
    Because ON/OFF change with electromagnetic clutch becomes unnecessary, the motor durability is increased and the maintenance becomes much easier.
  • monitor metering pump
  • Production control

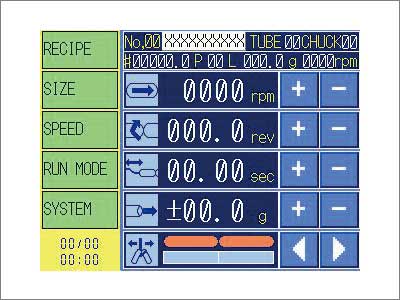

  • All your necessary information displayed at a moment notice, quick and easy. Everything is stored and predetermined. Machine speed, pump speed, front and tail of casing, twist, etc, the same every time. All vital data including cycles run, set points, etc, can be checked at anytime.
  • More durable metering pump (Patented in the U.S.A)

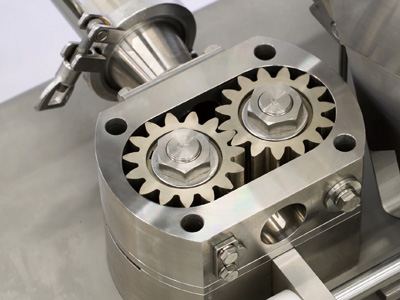

  • The metering pump offers increased durability compared to conventional ones. Our design offers excellent long term weight control with less necessary overhauls.
    A Servo motor starts and stops the pump precisely without slippage offering exact front ends tails.
  • Maintenance free no oil twisting system Separation of pneumatic parts and electrical parts
  • Maintenance free no oil twisting system (patented in the U.S.A)

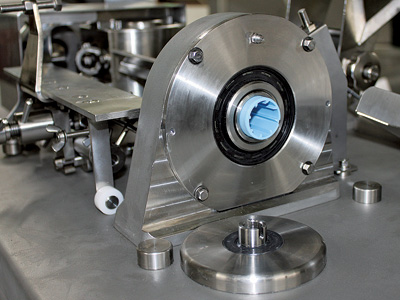

  • Never have to concern about leaks. Direct drive from motor with timing belt brings fewer components and extended parts life. When necessary, replacing parts is done quickly and easily without the need to remove the entire twister assembly.
  • Separation of pneumatic parts and electrical parts

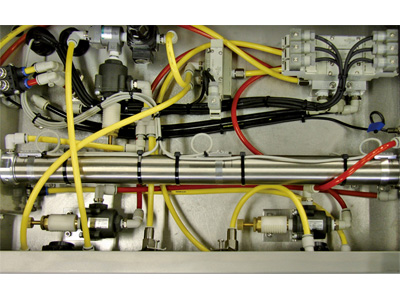

  • Complete separation of pneumatic parts and electrical parts allows easy and safe repair/adjustment.
  • ■ SPECIFICATION

    Production Rate Artificial Casing Max. 3,200 kg/hg (7,000 lb/hr)

    ※Dependent on casing quality, product size, weight and/or factory conditions.

    Product Size Artificial Casing 3 pitches (28.6 mm , 1 1/8 in) through 32 pitches (304.8 mm , 12 in ) or more

    ※Longer sizes can be applied with HITEC'S optional unit.


    Casing Size HITEC M-10X HITEC M-20X
    Diameter Collagen Casing 13 mm ~ 32 mm
    Cellulose Casing 14.5 mm ~ 34 mm
    Shirred Length Collagen Casing 280 mm , 11 1/32 in300 mm , 11 13/16 in
    Cellulose Casing 325 mm , 12 25/32 in440 mm , 17 5/16 in

    ■ MACHINE SIZE

    Total Machine Size HITEC M-10X
    +8F conveyor
    HITEC M-20X
    +8F conveyor
    HITEC M-10X
    +10F conveyor
    HITEC M-20X
    +10F conveyor
    Height 1846 mm
    (72 11/16 in)
    1846 mm
    (72 11/16 in)
    1846 mm
    (72 11/16 in)
    1846 mm
    (72 11/16 in)
    Tube height 1270 mm (50 in) 1270 mm (50 in) 1270 mm (50 in) 1270 mm (50 in)
    Length MAX 5045 mm (198 5/8 in) 5424 mm(233 7/16 in) 5665 mm(223 1/16 in) 6044 mm(237 15/16 in)
    Width 795 mm (31 5/16 in) 795 mm(31 5/16 in) 735 mm(28 15/16 in) 735 mm(28 15/16 in)
    Weight 690 kg (1,518 lb) 730 kg (1,610 lb) 710 kg (1,562 lb) 750 kg (1,650 lb)

    ■ REQUIREMENTS

    Electrical Requirements Three-Phase 6,775 W
    Pneumatical Requirements Quality clean and dry
    Pressure 520 kPa (5.2 bar)        75 psi
    Consumption 1 L, (1,000 cm3) per min     60 in3 per min
    Water Requirements Quality Clean and drinkable water
    Pressure 280-410 kPa (2.8-4.1 bar)     40-60 psi
    Consumption 1 L, (1,000 cm3) per min     60 in3 per min
    Emulsion Requirements Pressure 500 kPa (5 bar)        75 psi
    Consumption Max. 3,200 kg/hr        Max. 7,000 lb/hr
    Piping Largest diameter and shortest length
  • ※ Specifications and equipment are subject change without any obligation on the part of manufacturer.
    ※ The above production rate is subject to change due to the conditions such as production item, factory and other conditions.
  • ■ LAYOUT

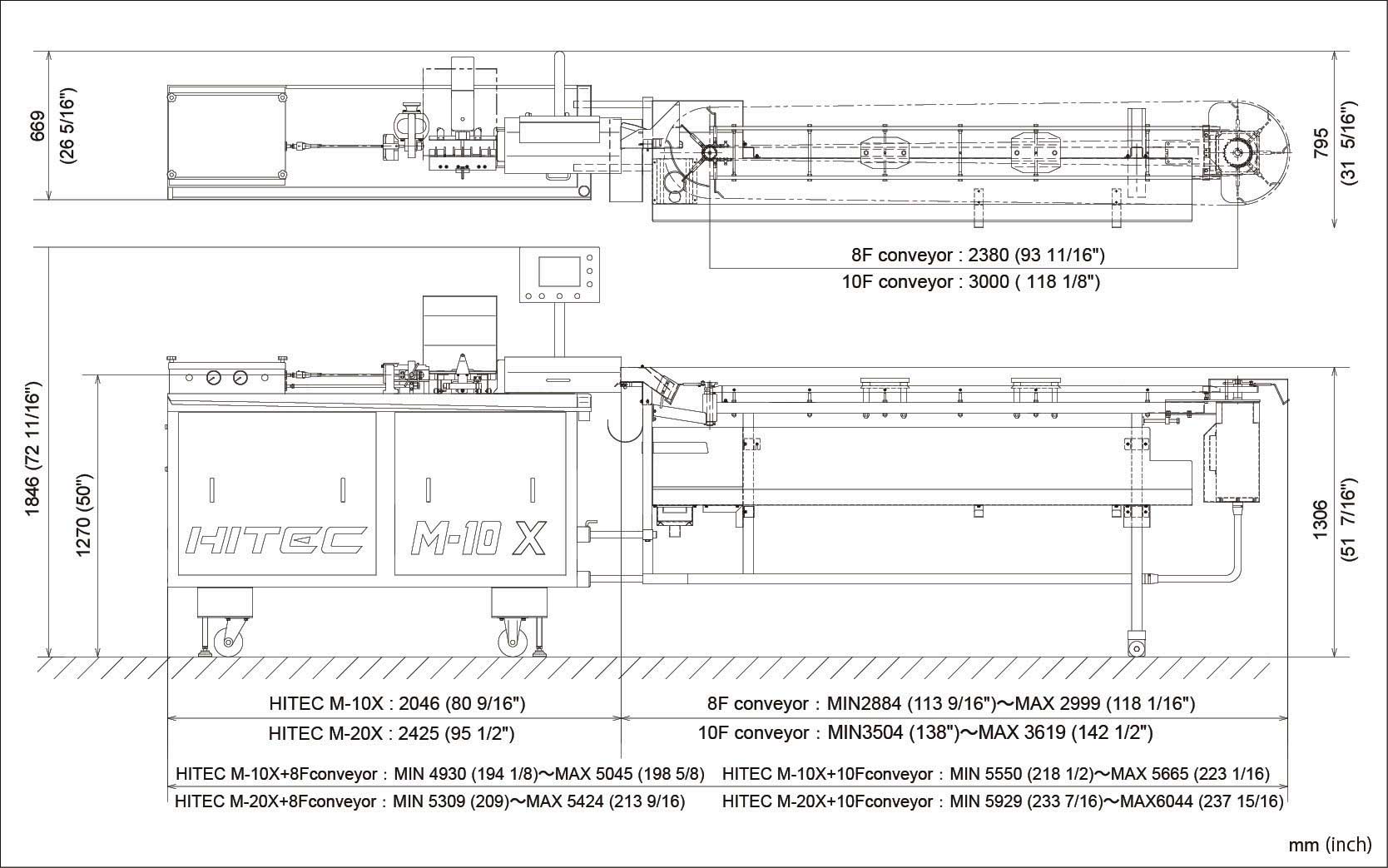

    layout of HITEC M10-X,HITEC M20-X
  • ※ Layout dimension includes dimension of optional equipment.
  • --------Contact us!--------
