SAUSAGE CUTTING MACHINE

　
hicut2のimage

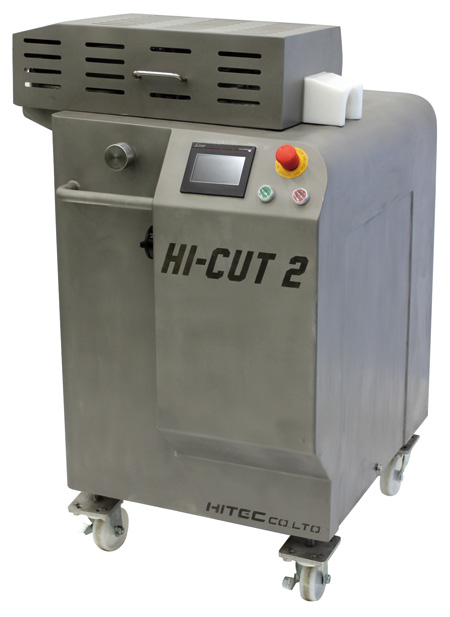

HI-CUT2

  • A new model has been launched from the sausage cutter.
    HI-CUT 2 realizes the precise cutting with high speed.
    The counter function is available as the conventional model.

    • HI-CUT2　MOVIE

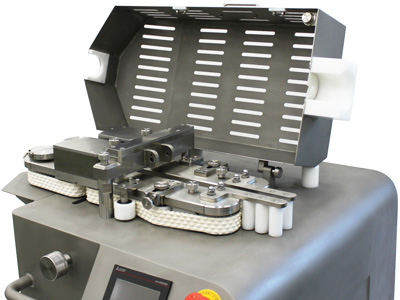

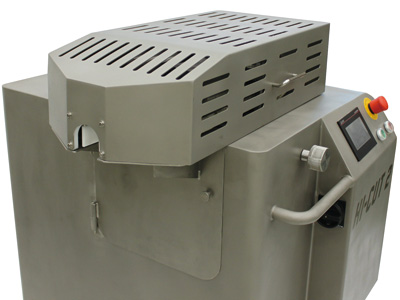

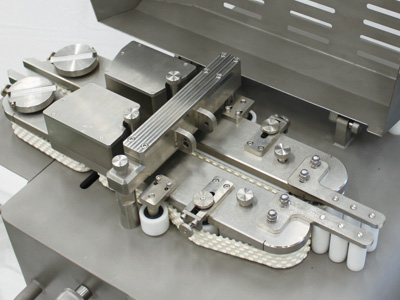

    Hygienic design Adjustable belt for stable intake and discharge
  • Hygienic design.
    		•
  • Adjustable belt for stable intake and discharge.
    		•

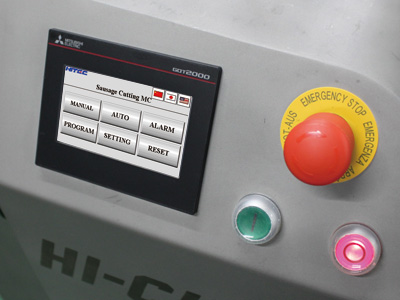

    Designed for food safety Comfortable and simple operation
  • Designed for food safety.


  		•
  • Comfortable and simple operation.


    		•

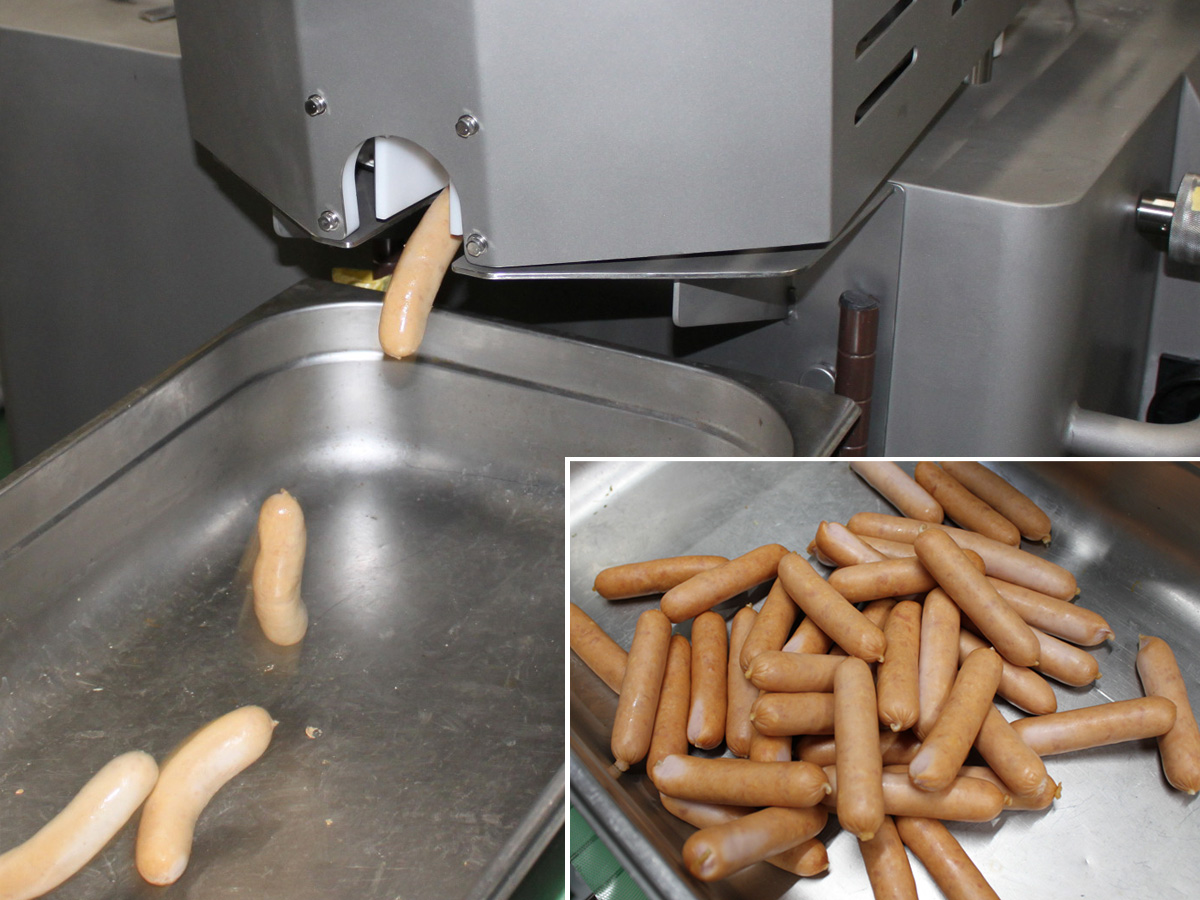

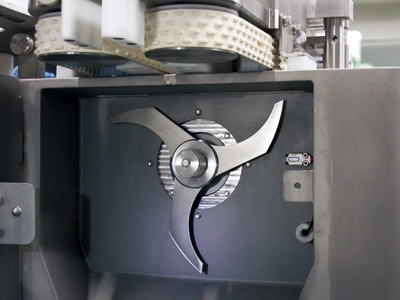

    Precise cutting Easy cutting adjustment
  • Precise cutting.


  		•
  • Easy cutting adjustment.


    		•

    ■ SPECIFICATION

    Conveyor Speed 0．25～2.1 m / s
    Cutting Capacity 1,800 pieces / min
    Casing Size φ 10 mm ～ 50 mm
    Power Requirements Single phase 200V 1.5kW
    Height 970 mm　(38 3⁄16 in)
    Width 810 mm　(31 57⁄64 in)
    Length 825 mm　(32 31⁄64 in)
    Weight Approx. 310 kg　(684 lbs)
  • ※ Specifications and equipment are subject to change without any obligation on the part of manufacturer.
    ※ The above production rate is subject to change due to the conditions such as production item, factory and other conditions.

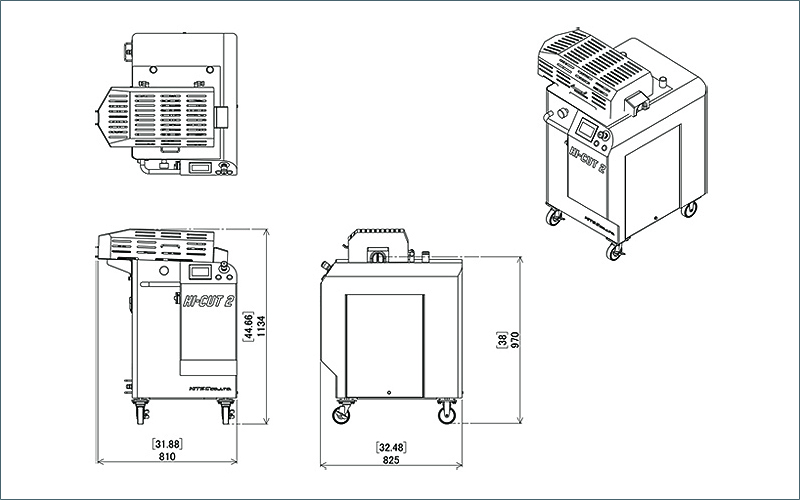

    • ■ LAYOUT

    　　　　　　　　　　　　　　　　　　
    layout of hi-cut2
  • ※ Layout dimension includes dimension of optional equipment.
