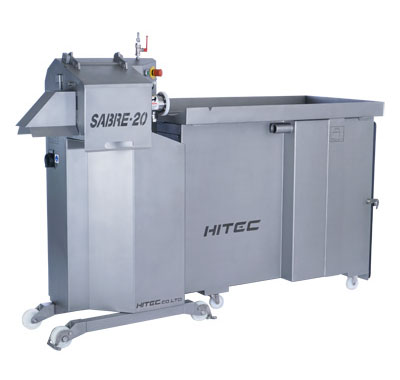

HIGH SPEED SAUSAGE PEELING MACHINE

　
SABRE-20

SABRE-20

  • The new HITEC " SABRE-20" sausage peeling machine offers solutions for many common peeling problems.

    • SABER-20 MOVIE
    Peeling a wide variety of products Keep Sanitary Conditions
  • Peeling a wide variety of products
  • It is possible to peel sausage products of cellulose casing from 13 mm to 36 mm. The minimum length of product is 28.5 mm. So it can handle a wide range from cocktail sausages through long jumbo length products..

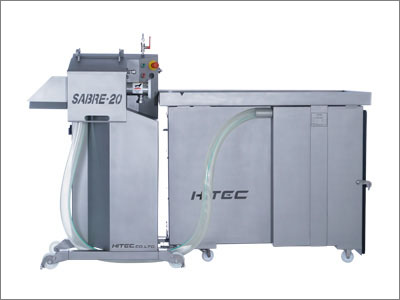

  • Keep Sanitary Conditions
  • The SABRE-20 is designed with angled surfaces to eliminate any standing water. This design helps keep a sanitary environment.
    		•
    Easy & Quick Maintenance Easy Product Changeover

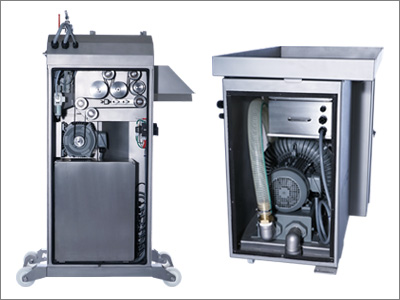

  • Easy & Quick Maintenance
  • A large opening at the back of the machine, which is about 90% of the backside area, is very helpful for easy access and maintenance.Replacing a blower is also easy.
    		•

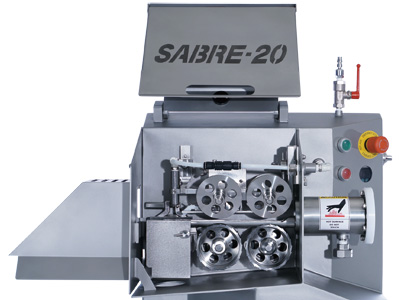

  • Easy Product Changeover
  • It's very easy to change over to a different size product. The SABRE-20 allows even inexperienced operators to easily change parts and make parts adjustment.
    		•
    High speed peeling Vacuum Tank unit

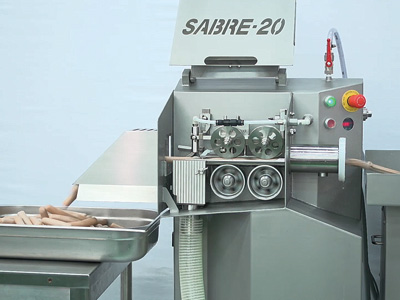

  • High speed peeling
  • The maximum speed is 300 meters a minute. Operators can adjust the peeling speed depending on the product sizes.
    		•

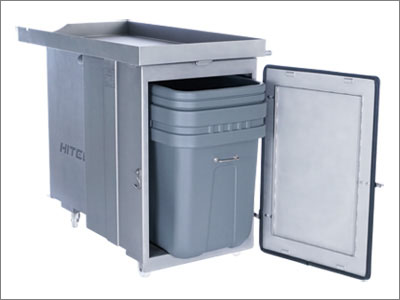

  • Vacuum Tank unit
  • Peeled casings are delivered to the dust box in the vacuum tank. For customers who adopt central vacuuming system at their plants, we provide SABRE-20 without vacuum tank.
    		•

    ■ SPECIFICATION

    　　WITHOUT VACUUM TANK UNIT 　　　　WITH VACUUM TANK UNIT
    Product Size Diameter 13 mm ～ 36 mm
    Length 3 pitches (28.5 mm) more
    Peeling Speed Max.980 ft (300 m)／min
    Sausage Loading Height High type : 1,220 mm (48 1／16 in)
    Low type : 1,060 mm (41 3／4 in)
    Height High type : 1,470 mm (57 7／8 in )
    Low type : 1,310 mm (51 9／16 in)
    Width 840 mm (33 1／16 in) 2,040 mm (80 5／16 in）
    When opened : 2,650 mm (104 5／16 in）
    Depth 427 mm (16 13／16 in) 700 mm (27 9／16 in)
    Weight Approx.150 kg (330 lbs.) Approx.420 kg (945 lbs.)
    Power Requirement Three-phase 1.55 kW Three-phase 3.05 kW
    Air Requirement Pressure : 75-100 PSI (5.3-7.0 kgf／c㎡)
    Comsumption : 283 L／min-425L／min
    Steam Requirement Pressure : 30 PSI (2.1 kgf／c㎡)
    Comsumption : 0-50 kg／h
  • ※ Specifications and equipment are subject to change without any obligation on the part of manufacturer.
    ※ The above production rate is subject to change due to the conditions such as production item, factory and other conditions.
    ※ The product quality and peelability of the machine depend on the product condition and the machine settings.

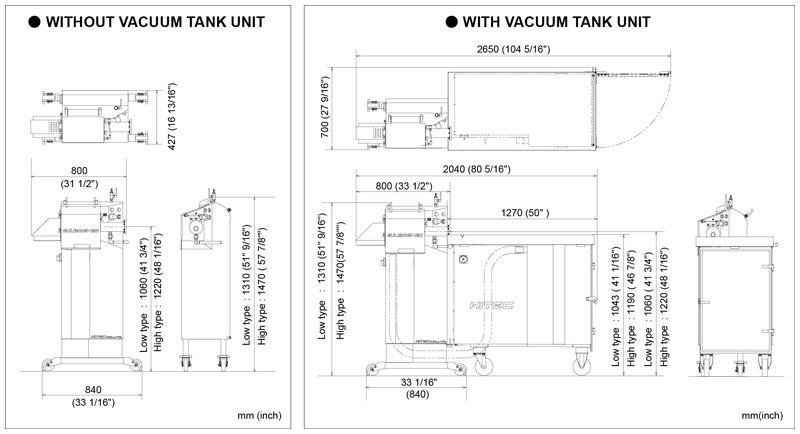

    • ■ LAYOUT

    　　　　　　　　　　　　　　　　　　
    Layout of SABRE-20
  • ※ Layout dimension includes dimension of optional equipment.
