SAUSAGE CUTTING MACHINE

　
hicut3のimage

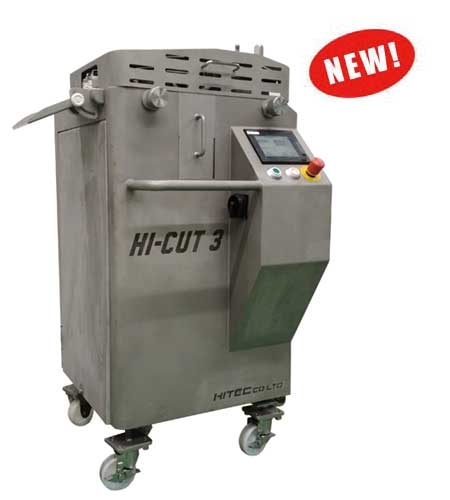

HI-CUT3

  • New Model of Sausage Cutter Released !
    Achieves Faster and More Accurate Cutting.

    [Standalone Mode]
    In the standalone mode of the “HI-CUT 3,” a wide variety of sausages can be cut quickly and precisely. Both the supply side and discharge side can be adjusted according to the product, allowing for optimal settings for each type of sausage.

    [Connection Mode]

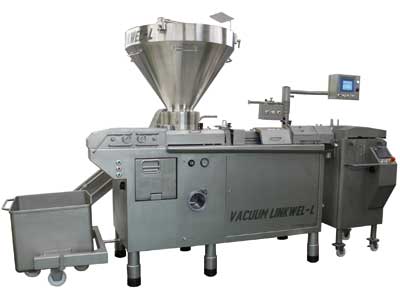

    The “HI-CUT 3” can be installed on our “VACUUM LINKWEL-L” sausage vacuum high-speed fixed-weight and fixed-length stuffer, enabling operation in connection mode. It’s perfect for the automatic production of fresh sausages.

    • HI-CUT3 [Standalone Mode] MOVIE

    HI-CUT3 [Connection Mode] MOVIE
    Suitable for a Wide Range of Sausages Adjustable on Both the Supply and Discharge Sides
  • [Standalone Mode]

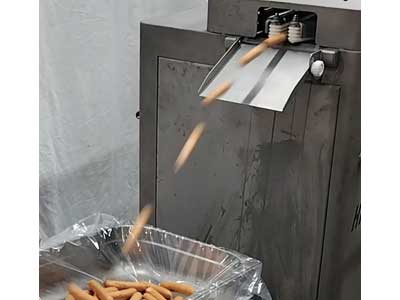

    Suitable for a Wide Range of Sausages
  • Natural casings, Collagen casings, Cellulose casings, Cooked sausages, Fresh sausages, Sausages of various sizes.
  • [Standalone Mode]
    Adjustable on Both the Supply and Discharge Sides
  • The supply and discharge conveyors are completely independent, allowing flexible adjustments for both sides.
    • Gap adjustments between conveyors to match the product thickness
    • Conveyor speed adjustments to suit the product's condition
    • Consistent Weight and Fixed Length Production Precise Cutting
  • [Connection Mode]
    Consistent Weight and Fixed Length Production
  • When connected to a stuffer, the cutting machine ensures that the product is cut to the set weight and fixed length.


    		•
  • [Connection Mode]

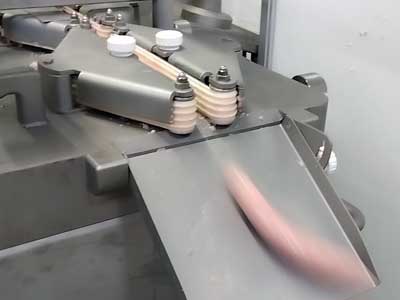

    Precise Cutting
  • With high-performance cutting capabilities, fresh sausages can be cut quickly and accurately.


    • Easy Cutting Adjustments Comfortable and Simple Operation

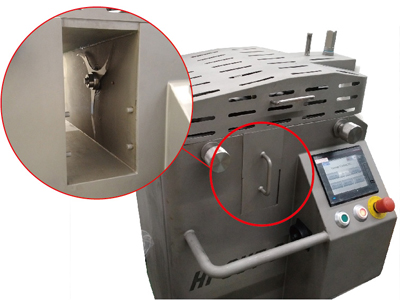

  • Easy Cutting Adjustments
  • The settings can be easily configured and adjusted to match the product being cut.


    		•

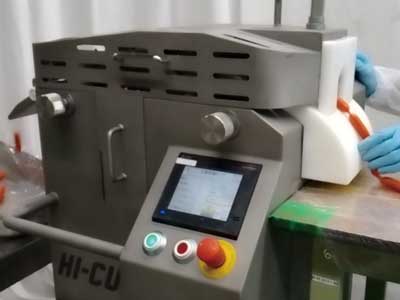

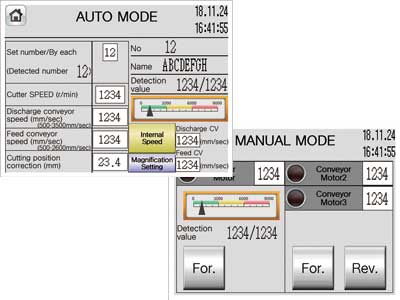

  • Comfortable and Simple Operation
  • Once installed, the machine is easy to use, with a simple and user-friendly interface that anyone can operate right away.


    • ■ SPECIFICATION (HI-CUT 3)

    In feed conveyor speed 500 - 2,600 mm / s
    Discharge conveyor speed 500 - 3,500 mm / s
    Production cut rate Example)
    For a product with a total length of 50mm
    In feed conveyor settings
    At 500mm/s setting : 600units/m
    At 2,000mm/s setting : 2,400units/m
    Casing Size φ 12 mm - 40 mm
    Power Requirements Three-phase 200V 2.5kW
    Height 1,253 mm (49 21 / 64 in)
    Width 752 mm (29 39 / 64 in)
    Length 814 mm (32 3 / 64 in)
    Weight Approx. 335 kg (738 lbs)
  • ※ Specifications and equipment are subject to change without any obligation on the part of manufacturer.
    ※ The above production rate is subject to change due to the conditions such as production item, factory and other conditions.

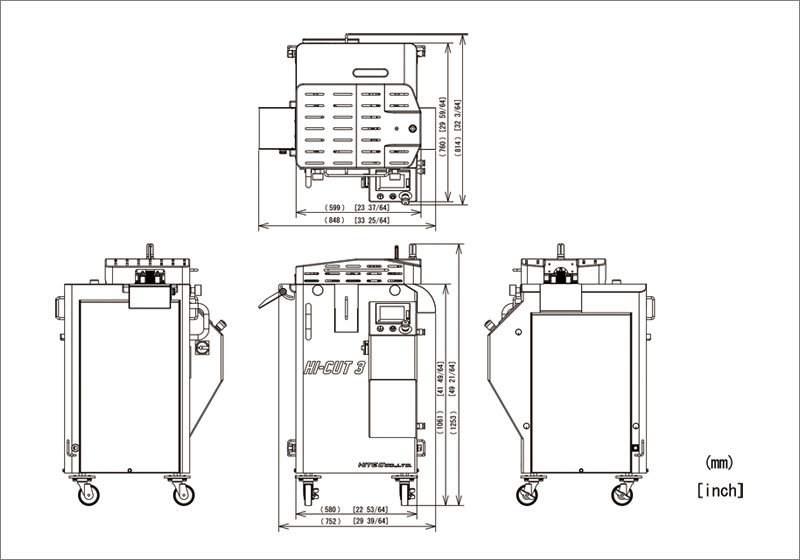

    • ■ LAYOUT (HI-CUT 3)

    　　　　　　　　　　　　　　　　　　
    layout of hi-cut3
  • ※ Layout dimension includes dimension of optional equipment.

    • ■ SPECIFICATION (HI-CUT 3 + VACUUM LINKWEL-L)

    In feed conveyor speed Determine the speed from
    the VACUUM LINKWEL-L stuffing settings
    Discharge conveyor speed Set based on the above speed
    Production cut rate Based on the VACUUM LINKWEL-L stuffing settings
    Casing Size φ 12 mm - 40 mm
    Power Requirements Three-phase 200V 2.5kW
    Height 3,171 mm (124 27 / 32 in)
    Width 3,768 mm (148 11 / 32 in)
    Length 1,573 mm (61 59 / 64 in)
    Weight Approx. 1,835 kg (4,045 lbs)
  • ※ Specifications and equipment are subject to change without any obligation on the part of manufacturer.
    ※ The above production rate is subject to change due to the conditions such as production item, factory and other conditions.

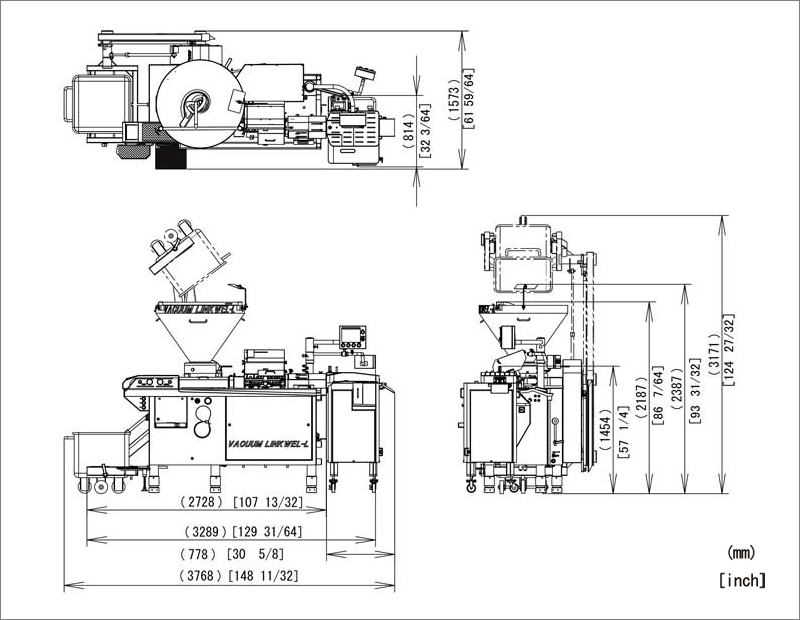

    • ■ LAYOUT (HI-CUT 3 + VACUUM LINKWEL-L)

    　　　　　　　　　　　　　　　　　　
    layout of hi-cut3
  • ※ Layout dimension includes dimension of optional equipment.
