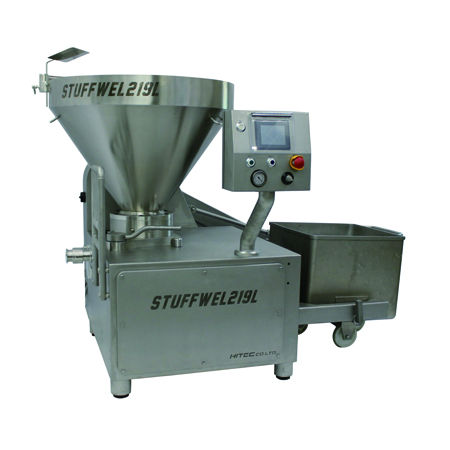

VACUUM FOOD TRANSFER PUMP - LOW FLOOR TYPE

　
STUFFWEL 219L

STUFFWEL 219L

  • High Performance,
    High precision
    VACUUM FOOD TRANSFER PUMP.

    • Lower body height and hopper.
    Easy to check meat inside the hopper.
    Good for lower ceiling factory.

  • For the constant pressured operation with high speed linking and hanging system LINKWEL, MACHWEL and etc. Not only that, it is also good to connect hamburg former and to pump the viscous stuff etc.
    • Vane Pump Foldable Hopper with Screw Feeder

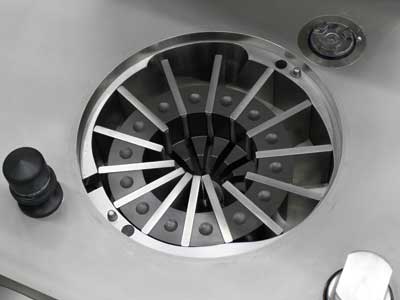

  • Vane Pump
  • Due to the new type vane pump, it is accomplished to convey products without damaging such as crushing and breaking into pieces.

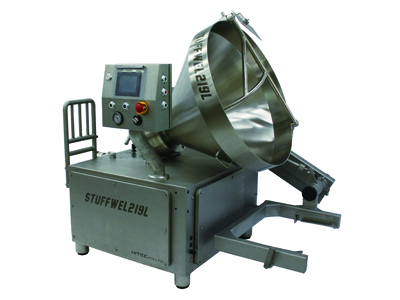

  • Foldable Hopper with Screw Feeder
  • Hopper is internally equipped with Screw Feeder. It makes to use up all meat without waste. Also, since Hopper is foldable, it is easy and simple to wash.

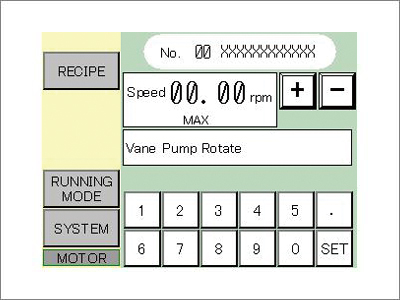

    • Constant Pressure Device (PID Device), Pressure Gauge (Option) Pump Specification

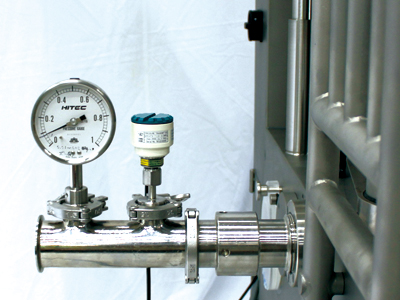

  • Constant Pressure Device (PID Device), Pressure Gauge (Option)
  • The equipment feeds meat with controlled pressure to other process equipment.
    		•
  • Pump Specification

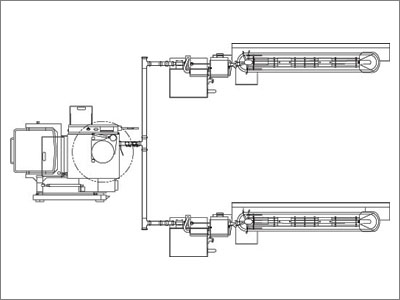

  • The STUFFWEL 219L can also be used as a meat transfer pump by using PID device and controling the meat pressure inside the piping.The layout above is an example of Hitec MACHWEL machine. One STUFFWEL 219L can be connected to multiple linking and hanging machines.

    • ■ SPECIFICATION

    STUFFWEL 219L STUFFWEL 219L＋Lifting Device
    Filling Capacity up to 3,000 kg / h
    Filling Pressure up to 40 bar
    Portioning Range 4.0 g ～ 9,999.9 g
    Hopper Capacity 300 L
    Height 1,553 mm (61 9/64 in) 1,553 mm (61 9/64 in)
    Depth 1,265 mm (49 51/64 in) 1,684 mm (66 19/64 in)
    Length 1,399 mm (55 5/64 in) 2,030 mm (79 59/64 in)
    Weight Approx. 700 kg Approx. 925 kg
    Power Requirements Three-Phase 200V 4.8kW Three-Phase 200V 6.25kW
  • ※ Specifications and equipment are subject to change without any obligation on the part of manufacturer.
    ※ The above production rate is subject to change due to the conditions such as production item, factory and other conditions.

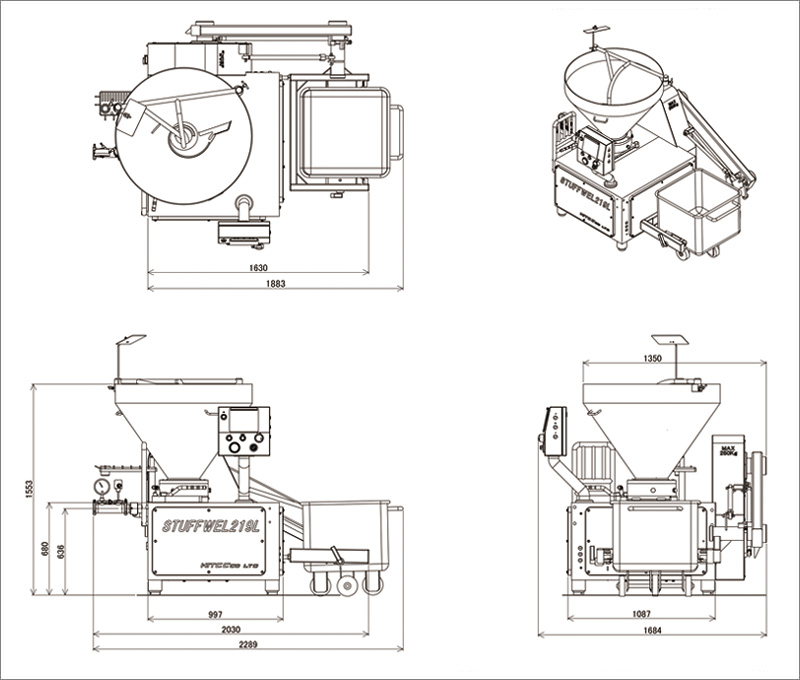

    • ■ LAYOUT

    　　　　　　　　　　　　　　　　　　
    layout of STUFFWEL 219L
  • ※ Layout dimension includes dimension of optional equipment.
