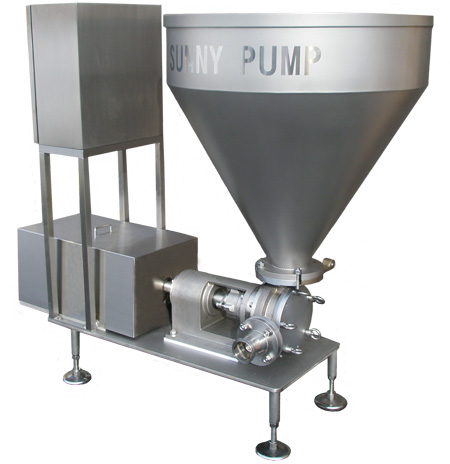

FOOD TRANSFER PUMP

　
SPS-120V

SPS-120V

  • Good for various kinds of foods such as hamburger steak, chinese dumplings materials and fish paste with high viscosity.
    • Dough such as chinese steamed buns and bakery
  • ●Rotary vane type in pump prevents deterioration in the material quality.
    ●Constant pressure device is available in accordance with your usage.
    ●Less fluctuation, less pressure variation, keep the good transfer.
    ●Standard hopper has 300 liters capacity, and available 500 liters and 900 liters too.
    • a rotary vane type machine that is gentle with even coarse minced meat relief valve model

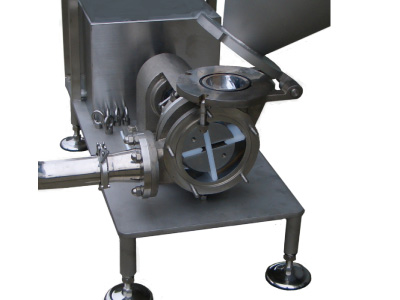

  • A ROTARY VANE TYPE MACHINE THAT IS GENTLE WITH EVEN COARSE MINCED MEAT
  • The vane pump ensures smooth feeding of the raw material without crushing the meat. Plating finish on the inside of the pump housing and UHMWPE(Ultrahigh Molecular Weight Polyethylene) vane ensure longer life of the housing. The inside area where the raw material passes can be easily disassembled for cleaning, maintenance allowing a high standard of sanitation.

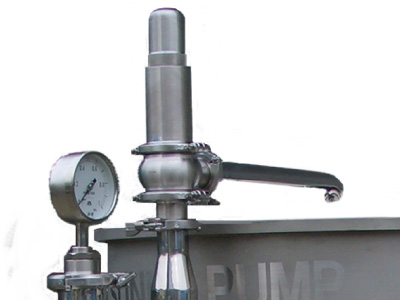

  • RELIEF VALVE MODEL
  • Constant pressure device will prevent deterioration in the meat quality and it will improve stuffing accuracy during stuffing. We also have SPS-V series with relief valve available as a low price model.
    • simple speed setting various optional devaices

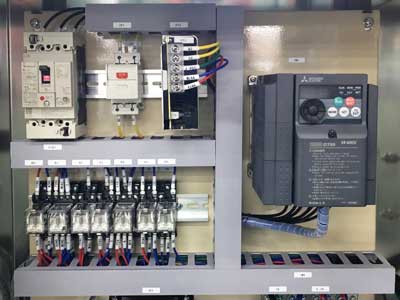

  • SIMPLE SPEED SETTING
  • As the speed can be set easily by means of the inverter control and starting power is required, the pump rotates smoothly.
    		•
  • VARIOUS OPTIONAL DEVICES
  • ○Lifting Device
    ○Relief Valve
    ○Magnetic Filter

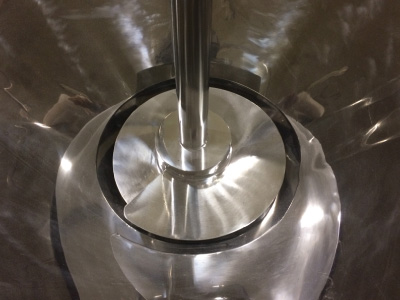

    ○Agitator (Screw feeder in hopper)
    ○Residual Detect Sensor
    ○Cleaning Pig System for Pipeline

    • ■ SPECIFICATION

    Hopper Capacity 300 L ( 79.3 gal ) 500 L ( 132 gal ) 90 L ( 237.8 gal )
    Discharge Rate Per Revolition 1.2 L ( 0.32 gal )
    Discharge Rate Max 2333 Kg / hr ( 5130 lb / hr )
    Stuffing Rate 2000 Kg / hr ( 4400 lb / hr )
    Pump Revolution Speed 30 - 60 rpm
    Power Requirement Three-Phase , 3.7 kW
    Height 1470 mm 1860 mm 1580 mm
    Width 940 mm 940 mm 1290 mm
    Length 1730 mm 1730 mm 2220 mm
    Optional Lifting Device／Rellef／Magnetic Filter／Agitator
    Residual Detect Sensor／Cleaning Pig System for Pipeline
  • ※ Specifications and equipment are subject to change without any obligation on the part of manufacturer.
    ※ The above production rate is subject to change due to the conditions such as production item, factory and other conditions.

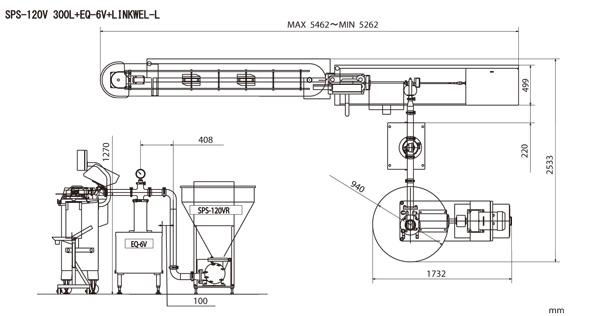

    • ■ LAYOUT

    　　　　　　　　　　　　　　　　　　
    layout of SPS-120
  • ※ Layout dimension includes dimension of optional equipment.
