AUTOMATION SYSTEM

This system is designed for low maintenance,
with speeds similar to traditional manual operation.
The smooth and continuous operation makes
for a SAFER, LARGER OUTPUT OVERALL.

Current HITEC linkers you have are retrofitable to run with automation system.

AUTOMATION SYSTEM MOVIE [NEW]

AUTOMATION SYSTEM MOVIE

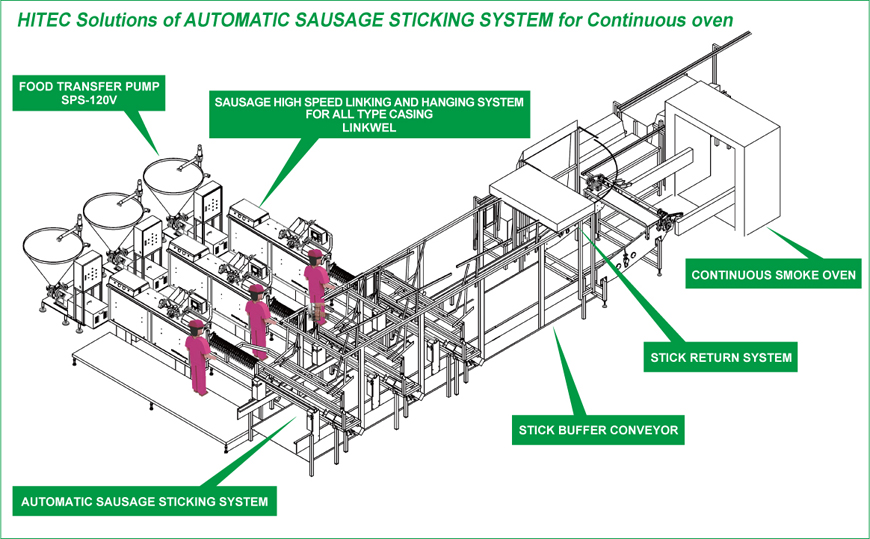

HITEC Solutions of AUTOMATIC SAUSAGE STICKING SYSTEM for Continuous oven 【Capacity】 Cycle time per stick・・・Approx. 4～5 sec/stick (per 1 production line of continuous smoke house) Casing Type・・・Natural casing, Collagen casing, Cellulose casing

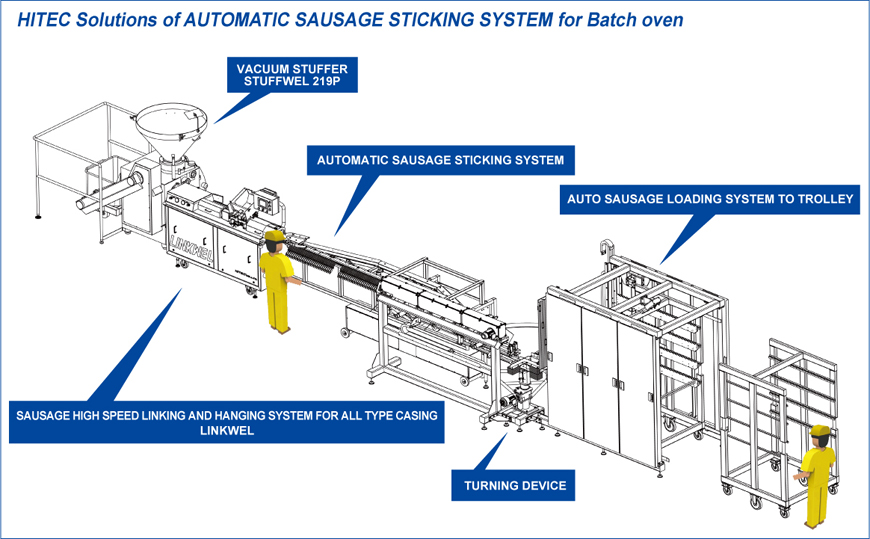

HITEC Solutions of AUTOMATIC SAUSAGE STICKING SYSTEM for Batch oven 【Capacity】 Cycle time per stick・・・Approx. 10 sec/stick (In case 2 units of HITEC linkers set to a set of AUTOMATIC SAUSAGE STICKING SYSTEM) Casing Type・・・Natural casing, Collagen casing, Cellulose casing

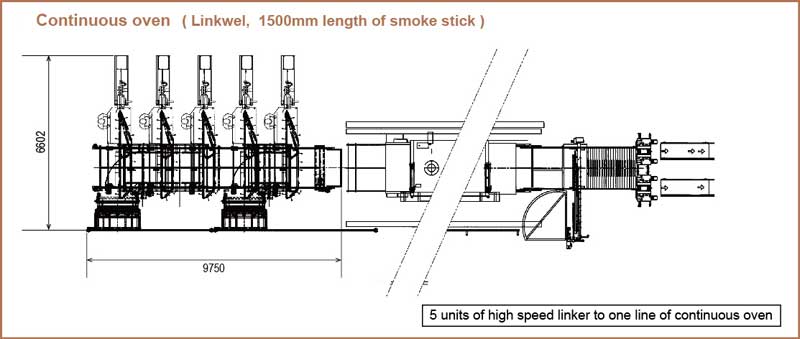

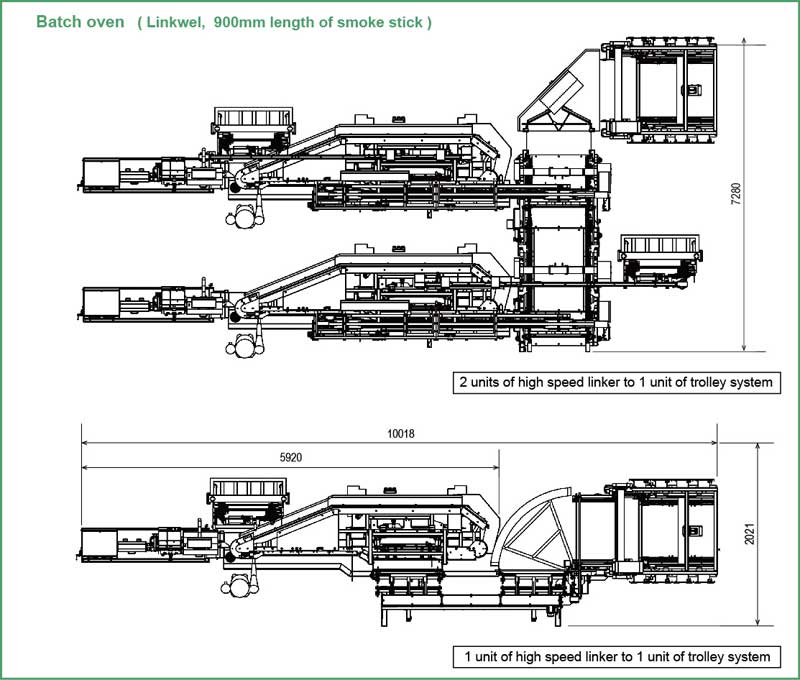

■ LAYOUT SAMPLE

　　　　　　　　　　　　　　　　　　 　　　　　　　　　　　　　　　　　　
