SAUSAGE HIGH SPEED LINKING AND HANGING SYSTEM FOR ARTIFICIAL CASING

　
HITEC M-3X HITEC M-3XL

HITEC M-3X / HITEC M-3XL

  • The features of a required Sausage Linking is high spead production, accuracy of stuffing weight, reduction of problems during stuffing, easy product changeover, high durability, simple to repair when problems occur, are requirements of the sausage linker.
    To upgrade these features, Hitec's next suggestion is to control the pump drive by the servo motor.

    • HITEC M-3X MOVIE
    [ENGLISH]

    HITEC M-3X MOVIE
    [SPANISH]
    Operator Friendly Monitor metering pump
  • Operator Friendly Monitor
  • All your necessary information displayed at a moment's notice, quick and easy.
    		•
  • Heavy Duty metering pump
  • HITEC has achieved to make heavy duty metering pumps by stronger drive shaft, stronger idler shaft and more durable bearings. Our design offers excellent long term weight control with less necessary overhauls.
    • Stationary Chute Maintenance free no oil twisting system
  • Stationary Chute
  • By using the stationary chute, no more products will be jammed at the chute section. Due to HITEC’s innovation with electoric conveyors, a looping horn is not needed. Sausages are caught by the hooks. Several other features enable us to maximize output and hanging ability.
    		•
  • Maintenance free no oil twisting system
  • A simple motor with timing belt means fewer components and extended parts life. When necessary,replacing parts is done quickly and easily without the need to remove the entire twister assembly. No one can match the performance of this HITEC design.
    		•
    Flapper style casing feed mechanizm Linking Chain, Linking Belt
  • Flapper style casing feed mechanizm
  • The HITEC M-3X features HITEC's unparallel hopper design that eliminates the need for a casing clamp. The design is quick and easy operating and reliable feeding of casings.
    		•
  • Linking Chain / Linking Belt
  • Linking Chain : Available in various lengths from 3 pitches (28.56 mm). Half pitch (4.76 mm) can be chosen. Also straight stuffing (no twist) is available.
    Linking Belt : Pinchers on the linking belt make a fixed product length. Users can choose the product length from 2.0 cm and increase by 0.5 cm.
    		•
    monitor HITEC Hook Design Options
  • HITEC's electrical control choices
  • Easy to operate, non proprietary electronic components and controls. Omron, Mitsubishi or Allen Bradley, the choice is yours.
  • HITEC Hook Design Options

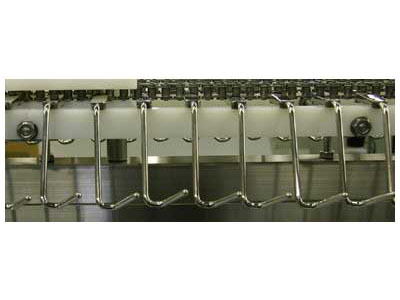

  • Above : Multi type casing round bar hook
  • Other hook designs available for ring sausage or other specialized applications.
    		•
    Hook distance
  • Hook distance
  		•

    ■ SPECIFICATION

    HITEC M-3X HITEC M-3XL
    Production Rate Ask.

    ※The figures shown above may change depending on the product,plant condition,local requirements for power and/or other respective matters.

    Product Size 3 pitches (28.4 mm, 1 1/8 in) through 32 pitches (305 mm, 12 in) or more

    ※Longer sizes can be applied with HITEC'S optional unit.

    Casing Size Cellulose casing code 13 through 36.
    Casing Stick Length Max 419 mm (16 1/2 in) cellulose casing Max 546 mm (21 1/2 in) cellulose casing

    ■ MACHINE SIZE

    HITEC M-3X HITEC M-3XL
    Height 1,976 mm (77 7/8 in)
    Width 763 mm (30 in)
    Length Linker 2,344 mm (92 1/4 in) 2,726 mm (107 3/8 in)
    Conveyor 8feet(2.4m) 3,034 mm (119 1/2 in) 3,034 mm (119 1/2 in)
    10feet(3m) 3,654 mm (143 7/8 in) 3,654 mm (143 7/8 in)
    Total 8feet(2.4m) 5,378 mm (211 3/4 in) 5,760 mm (226 7/8 in)
    10feet(3m) 5,988 mm (236 1/8 in) 6,380 mm (251 1/8 in)
    Weight Approx. 650 kg (1,430 lbs.) Approx. 660 kg (1,450 lbs.)
    Stuffing Tube Height 1,270 mm (50 in)

    ■ REQUIREMENTS

    HITEC M-3X HITEC M-3XL
    Power Requirements Three-Phase 8.85 kw
    Pneumatical Requirements Quality clean and dry
    Pressure 75 psi (520 kPA)
    Consumption 1,300 cm3 (79 in 3) per cycle 1,560 cm3 (96 in 3) per cycle
  • ※ Specifications and equipment are subject to change without any obligation on the part of manufacturer.
    ※ The above production rate is subject to change due to the conditions such as production item, factory and other conditions.

    • ■ LAYOUT

    　　　　　　　　　　　　　　　　　　

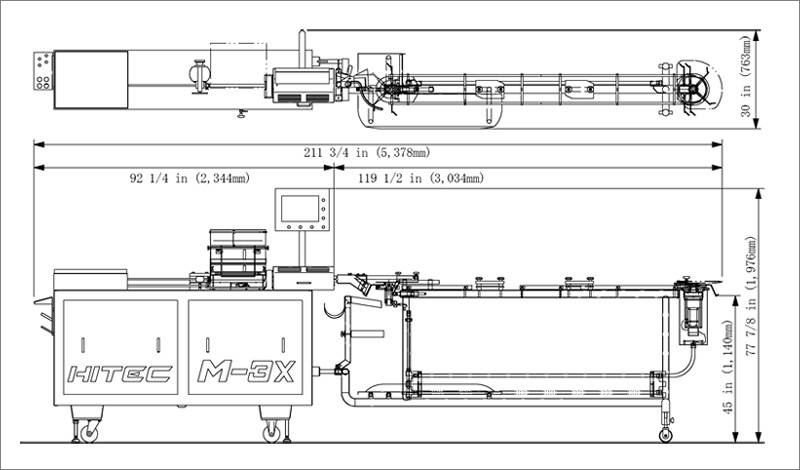

    Layout of M-3X M-3XL
  • ※ Layout dimension includes dimension of optional equipment.
