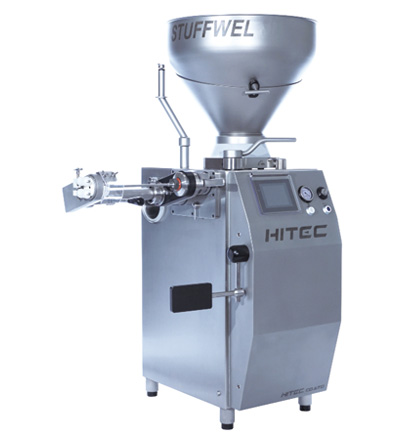

VACUUM STUFFER

　
STUFFWEL 51

STUFFWEL 51

  • Hitec has developed a new vacuum filling machine and is now selling in Japan and other global markets. With extreme ease of use and functionality the STUFFWEL 51 has been exceeding expectations. With advanced engineering Hitec was able to control cost of manufacturing without sacrificing Hitec quality and performance. These cost savings will allow Hitec to offer a competitive sales price.

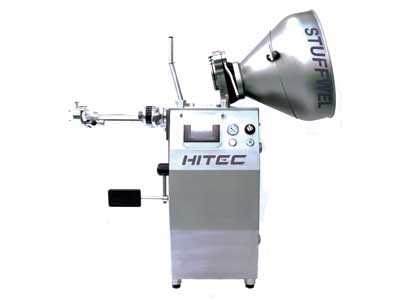

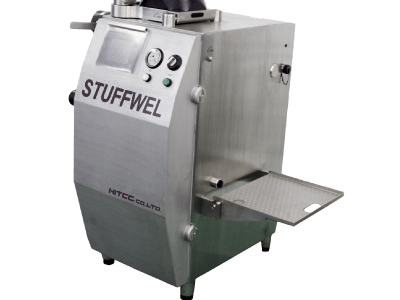

    • STUFFWEL 50 MOVIE

    STUFFWEL 50 Attachment MOVIE
    Vane Pump Foldable Hopper with Screw Feeder

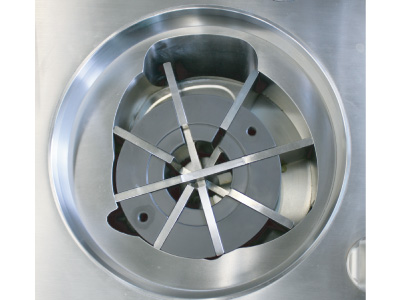

  • Vane Pump
  • Due to the new type vane pump, it is accomplished to convey products without damaging such as crushing and breaking into pieces.
    		•
  • Foldable Hopper with Screw Feeder
  • Hopper is internally equipped with Screw Feeder. It makes to use up all meat without waste.Also, since Hopper is foldable, it is easy and simple to wash.
    		•
    Hamburg Patty Former Flow Divider
  • Hamburg Patty Former (Attachment)
  • The product can be easily formed without losing of the texture of coarsely ground meat. The product remains consistent.
    		•

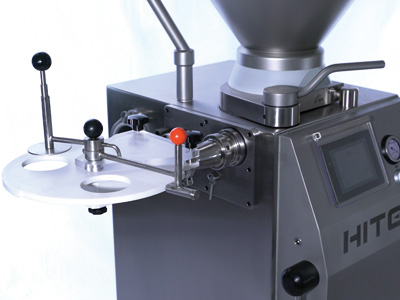

  • Flow Divider (Attachment)
  • Dispense multiple quantities at the same time.
    • Sausage Twisting Device Connecting with Clipper
  • Sausage Twisting Device (Attachment)
  • By installing a simple detachable twisting device, it is possible to stuff equal weight sausage one by one. The STUFFWEL 51 can produce Vienna Sausage to Frankfurter Sausage not only into natural casings but also artificial casings with a wide range of sizes.
    		•

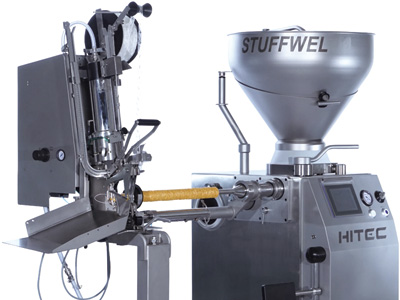

  • Connecting with Clipper (Attachment)
  • Connecting with a clipper machine, continuous production of bigger sized sausage with equal weight can be done. Such as bologna and Chubs and larger diameter products.
    		•
    Conveyor Belt Footstep can be attached

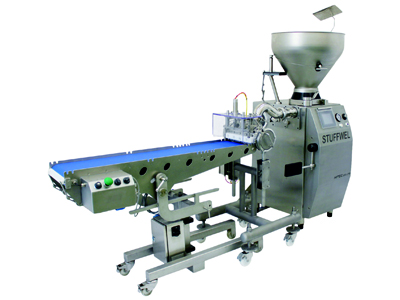

  • Conveyor Belt (Option)
  • Connect to a depositor, flow divider, etc.
    		•
  • Footstep can be attached (Option)
  • It is possible to attach footstep optionally.
    		•

    ■ SPECIFICATION

    STUFFWEL 51
    Filling Capacity up to 2,200 kg/h
    Filling Pressure up to 30 bar
    Portioning Speed　　25 g up to 200 portions/min
    Portioning Speed　　50 g up to 100 portions/min
    Portioning Speed　　100 g up to 50 portions/min
    Portioning Range 4.0～9,999.9 g
    Hopper Capacity divisible in 25/90 L
    Height 1,770 mm (69 11/16 in)
    Depth 805 mm (31 3/4 in)
    Length 1,110 mm (43 45/64 in)
    Weight Approx.390 kg
    Power Requirements
    without Twisting Device    		 Three-phase 3.8 kW
    Power Requirements
    with Twisting Device    		 Three-phase 4.4 kW
  • ※ Specifications and equipment are subject to change without any obligation on the part of manufacturer.
    ※ The above production rate is subject to change due to the conditions such as production item, factory and other conditions.

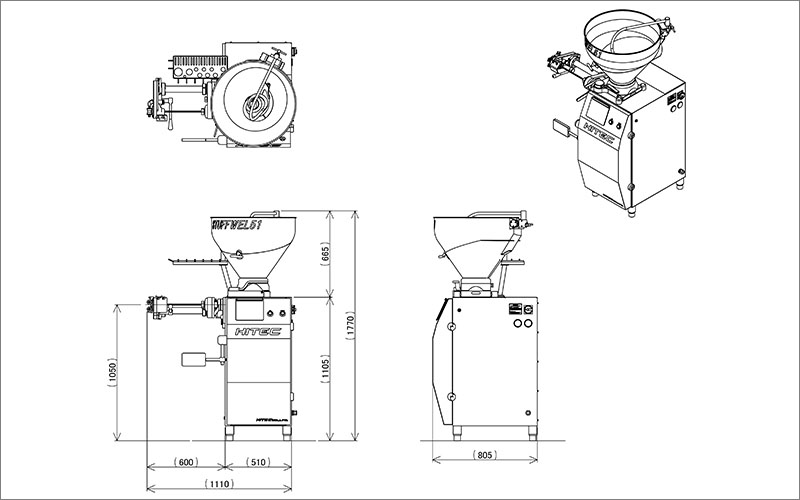

    • ■ LAYOUT

    　　　　　　　　　　　　　　　　　　
    Layout of STUFFWEL51
  • ※ Layout dimension includes dimension of optional equipment.
