SAUSAGE HIGH SPEED LINKING AND HANGING SYSTEM

　
MACHWEL-REVO-COLLA

MACHWEL REVOLVER COLLAGEN CASING FEEDER EQUIPPED

  • Multi stuffing tube !
  • More efficiency !
    Less defective ratio !

    Standard model MACHWEL Convertible to revolver !

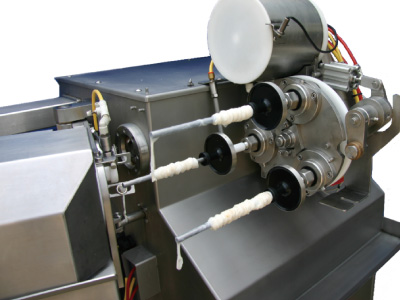

    • Multi stuffing tube revolver head
  • Multi stuffing tube revolver head
  • The multi stuffing tube turret (revolver head) allows:
    - pre-feeding of natural casings
    - up to 30% increased production output
    - faster cycle times
    - reduced machine stopping / waiting time
    		•

    ■ Comparison between MACHWEL and MACHWEL REVOLVER with revolver head

    MACHWEL MACHWEL REVOLVER
    Stuffing Tube 1-single 3-multiple
    Average Operation Rate 55% 65%
    Production / hour 300 kg / 660 lbs 420 kg / 925 lbs

    ■ SPECIFICATION

    Production Rate Natural Casing Max. 800 pcs / min
    Collagen Casing Max. 1000 pcs / min
    Product Size 3 pitches（28.56 mm）or more
    Casing Size Sheep Casing　　　14 mm ～ 25 mm
    Hog Casing　　　 26 mm ～ 36 mm
    Collagen Casing　　　13 mm ～ 36 mm
    Height 1,600 mm (62 63/64 in)
    Width 900 mm (35 7/16 in)
    Length 3,982 mm (156 49/64 in)
    Weight Approx 580 kg (1,278 lbs)
    Power Requirements Three - phase, 6.7 kW
    Pneumatic Requirements Pressure 0.5 Mpa (75 psi)
  • ※Specifications and equipment are subject change without any obligation on the part of manufacturer.
    ※ The above production rate is subject to change due to the conditions such as production item, factory and other conditions.

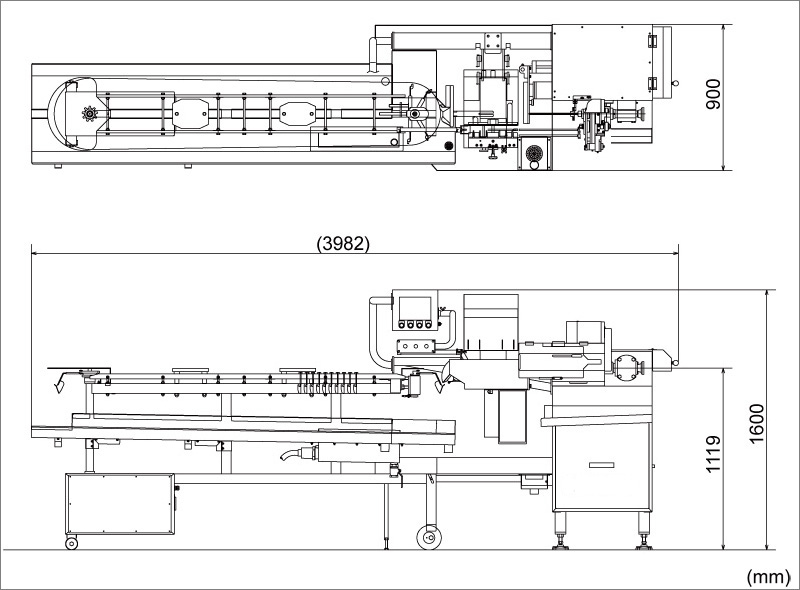

    • ■ LAYOUT

    　　　　　　　　　　　　　　　　　　
    layout of machwel-revo-colla
