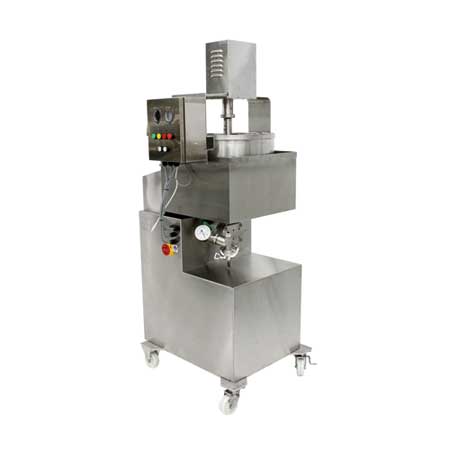

CO-EXTRUSION PUMP 2

CO-EXTRUSION PUMP 2

  • Produce Double Layer Sausages using CHEESE, MAYONNAISE etc. !
    Cocktail sized sausages and big diameter of sausages also can be produced !

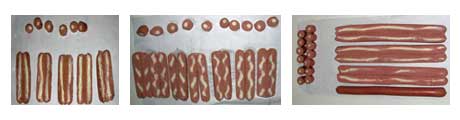

    • Section samples
  • ・Co-extrusion pump is transferring the inner material of double layer sausages.
    ・Double layer sausages can be produced by connecting HITEC high speed linkers such as LINKWEL, M-10, M-20 etc.
  • ・High speed stuffing makes it possible to output a large production of double layer sausages.
    ・A design to lower maintenance costs.
    • Connection with HITEC high speed linkers Control Box

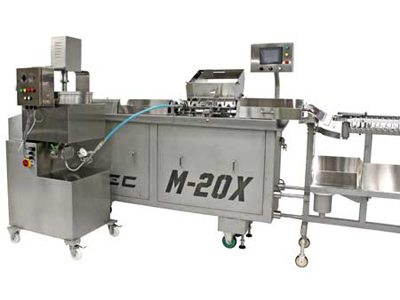

  • Connection with HITEC high speed linkers.
  • Any of HITEC high speed linkers such as LINKWEL, M-10, M-20 etc. can be connected with CO-EXTRUSION PUMP 2.
    Taking CO-EXTRUSION PUMP 2 off of high speed linker, you can use only high speed linker. Both a general and a double layer sausage can be produced.

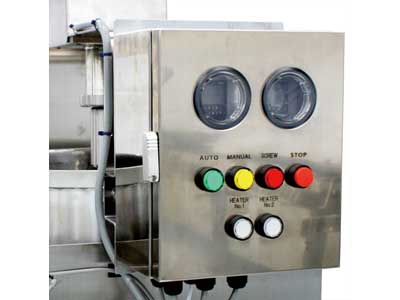

  • Control Box
  • Easy to change the run mode between the interlocking with high speed linker and the individual run by just pressing button. Discharge speed and heater temperature are shown on the monitor, which helps operators change the settings of the machine.
    • Metering pump Material hopper

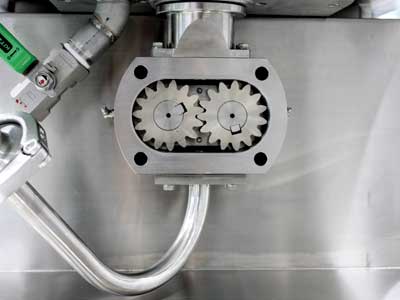

  • Metering pump
  • Expecting various materials, a metering pump is equipped. It controls discharge rate and makes much of weight control, which is important for sausage production. Sanitary design with easy disassembling and assembling.
    		•

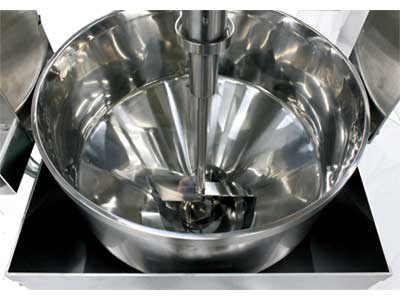

  • Material hopper
  • A material hopper is located inside the heating water tank. Even if the material has high viscosity, its fluidity can be kept good enough by using heating the water tank.
    Both a target temperature and the actual temperature on the monitor help the operators arrange the setting of temperature. An agitator in the hopper prevents the material from hardening.

    • ■ SPECIFICATION

    Hopper capacity 56 L
    Discharge rate (80℃) 0.7 - 2.5 l /min
    Speed range 60 - 300 rpm / 60 Hz
    50 - 250 rpm / 50 Hz
    Power requirements 1.8 kW
    Height 1,878 mm
    Width 870 mm
    Length 822 mm
  • ※ Specifications and equipment are subject to change without any obligation on the part of manufacturer.
    ※ The above production rate is subject to change due to the conditions such as production item, factory and other conditions.

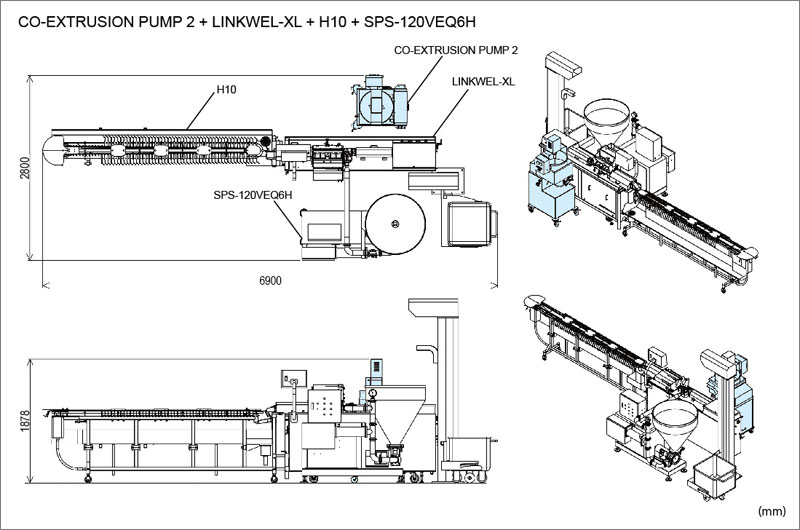

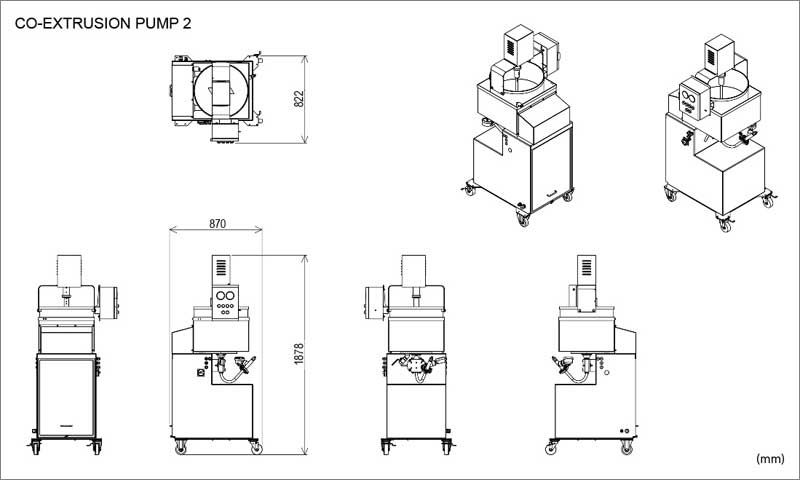

    • ■ LAYOUT

    　　　　　　　　　　　　　　　　　　
    layout of CO-EXTRUSION PUMP 2
    　　　　　　　　　　　　　　　　　　
    layout of CO-EXTRUSION PUMP 2
  • ※ Layout dimension includes dimension of optional equipment.
